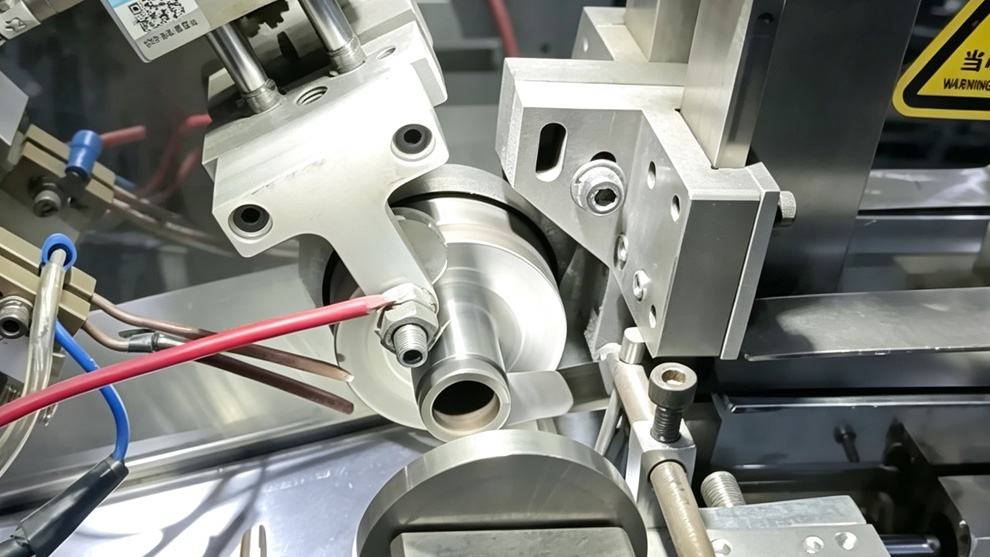

A Micro Precision Current Transformers consists of a primary winding, a secondary winding, an iron core, insulation between the windings and the core, and a casing.   Micro precision current transformers used to commonly use 1J85 splashed ink alloy wound into a ring-shaped iron core, but thanks to the industry development, currently those Micro Precision Current Transformers mainly use of nanocrystalline core. Common pressure pressed thin strips models include 1k107 and 1k107B. If the Micro precision current transformers performance requirements are not high, silicon steel sheets and ferrites can be used as a replacement choose. The advantage of a ring-shaped magnetic core is that it has no air gap and good magnetic properties. Especially if the winding is uniform during the winding process, the leakage magnetic flux is very small. The insulation between the ring core and the winding is generally achieved by adding a plastic protective shell to the core. The protective shell has two functions, insulation and protection of the core, which the protection of the core is the most important.  The core material is highly sensitive to stress, and its magnetic properties will change when subjected to stress. Adding a protective shell can reduce stress during winding, thus it is important to handle the transformer with care during production. However, ultrafine crystalline materials are already very brittle and require even more protection. After winding the windings, the transformer is encapsulated in the casing. Of course, there will be many inspection processes throughout the entire production process. Micro current transformers are divided into single turn and multi turn types according to the primary winding. The primary winding of a single turn miniature current transformer has only one turn. Rod type: Steel tube copper bars are integrated with the transformer housing through the iron core window (such as micro current transformers used in some electronic meters). Busbar type: The iron core window is retained, and the busbar passes directly through the iron core window. For measuring small currents, the busbar can also be wound around the iron core window for 2 or 3 turns to obtain a smaller current ratio. Multi turn miniature current transformers have multiple turns of primary winding, such as the 103105 series current type miniature voltage transformers. The function of potting adhesive is to encapsulate and insulate, and the commonly used material is epoxy resin+curing agent.

In the power supply lines, there is a huge difference in current and voltage, ranging from a few amperes to tens of thousands of amperes. For the convenience of secondary instrument measurement, it is necessary to convert the current into a relatively uniform current. In addition, the voltage on the circuit is relatively high, making direct measurement very dangerous. The current transformer plays a role in current conversion and electrical isolation. Previously, most display instruments were pointer type current and voltage meters, so the secondary current of current transformers was mostly in ampere level. Nowadays, most electricity measurement is digitized, and the sampling signal of computers is generally in the milliampere range (e.g. 0-5V, 4-20mA). The secondary current of micro current transformers is in the milliampere range, mainly serving as a bridge between large transformers and sampling.   Miniature current transformers are also known as "instrument current transformers". The term "instrument current transformer" refers to a multi current ratio precision current transformer used in laboratories, generally used to expand the instrument range Principle circuit diagram of current transformer Miniature current transformers work similarly to transformers based on the principle of electromagnetic induction. Transformers convert voltage, while miniature current transformers convert current. As shown in the diagram, winding N1 is connected to the measured current, which is called a set of windings (or primary winding, primary winding); Connect winding N2 to the measuring instrument and become the secondary winding (or secondary winding, secondary winding).   The current ratio between the primary winding power I1 and the secondary winding I2 of a miniature current transformer is called the actual current ratio K. The current ratio of a miniature current transformer when operating at the rated working current is called the rated current ratio of the current transformer, expressed in Kn. Kn=I1n/I2n   Micro current transformers can be roughly divided into measuring current transformers and protective current transformers. A. Measurement current transformer The measuring current transformer is mainly used in conjunction with measuring instruments to measure current, voltage, power, etc. under normal operating conditions of the circuit. The main requirements for measuring micro current transformers are: 1. Reliable insulation; 2. High enough measurement accuracy; When a high current occurs due to a fault in the side line, the transformer should saturate within an appropriate 20% (such as 500% of the rated current) to protect the measuring instrument.   B. Protective current transformer The protective current transformer is mainly used in conjunction with the relay device to provide a signal to the relay device to cut off the faulty circuit in case of short circuit overload or other faults, in order to protect the safety of the power supply system. The working conditions of protective miniature current transformers are completely different from those of measuring transformers. Protective transformers only start working effectively at currents several times or tens of times higher than normal. The main requirements for protective transformers are: 1. Reliable insulation; 2. A sufficiently large accurate limit coefficient, 3. Adequate thermal and dynamic stability. The maximum primary current that the protective transformer can meet the accuracy level requirements under rated load is called the rated accuracy limit primary current. The accurate limit coefficient is the ratio of the rated accurate limit current to the rated primary current. When the current is large enough, the iron core will saturate and cannot reflect the current. The accurate limit coefficient represents this characteristic. The accuracy level of the protective transformer is 5P and 10P, indicating that the allowable error at the rated accuracy limit for one current is 5% and 10%.   When a fault occurs in the circuit, the surge current generates heat and electromagnetic force, and the protective current transformer must withstand it. The effective value of the primary current that a current transformer can withstand without damage within one second in the event of a short circuit in the secondary winding is called the rated short-time current. The peak value of the primary current that the current transformer can withstand without damage in the event of a short circuit in the secondary winding is called the rated dynamic stability current.   Protective current transformers are divided into: Overload protection current transformer Differential protection current transformer Grounding protection current transformer (zero sequence current transformer)   C. Micro voltage transformer Micro voltage transformers, due to size and manufacturing reasons, usually use current type voltage transformers. In fact, it is a current transformer with a rated current ratio of 1 and both primary and secondary currents in milliampere level (e.g. 2mA/2mA):   During operation, the primary winding of the transformer is connected in series with the current limiting resistor R to measure the voltage, and the secondary output is connected to the operational amplifier for I/V conversion (or direct resistance sampling). At this point, the primary current is I1=U (R+r), and the secondary current I2=I1/Kn, where r is the internal resistance of the primary winding and Kn is the rated current ratio.

Reasons for errors In fact, there must be energy loss during the operation of the current transformer, which causes errors in the current transformer. To generate current in the secondary winding, an excitation current I0 is required to excite and generate induced potential and current. The excitation current is provided by the primary winding. The product I0W1 of the excitation current I0 and the number of turns W1 of the primary winding is called the excitation ampere turn or excitation electromotive force. It means that the first winding turns need to be deducted from the example turns before they are transmitted to the first winding, resulting in errors. The error is caused by providing excitation turns.   The error of current transformers consists of two parts: non ratio difference and phase difference. It should be noted that the transformer ratio is the percentage of the secondary current error value to the actual primary current, not the percentage of the rated current. This is different from the method of expressing the error of other general measuring instruments as a percentage of fullness (% F.S). There is no concept of full capacity for current transformers, only the measurement range and rated current. For example, a micro transformer with an accuracy level of 0.1 has an allowable ratio difference of+/-0.1% at 100% rated current and+/-0.4% at 5% rated current. Assuming the rated current is used as the full scale, the allowable ratio difference at 100% rated current is expressed as a percentage of full scale, which is+/-0.1% F.S. The allowable ratio difference at 5% rated current is expressed as a percentage of full scale, which is+/- (0.4x5%/100%)%=+/-0.02% F.S   Error compensation of current transformer Current transformers without compensation have negative specific differences and positive angular differences. The allowable range of error for current transformers at all levels is positive and negative deviation. Therefore, the surplus range of positive and negative deviations can be utilized to improve the accuracy of the transformer. In order to improve the accuracy of transformers, various compensation methods are generally used. In general, due to the small compensation value, it can be considered that the magnetic field of the iron core should not be abstracted. This can be calculated using error superposition. The compensation methods for current transformers include turn compensation, auxiliary iron core compensation, capacitor compensation, etc.   Turn compensation The compensation method for the number of turns of micro current transformers is the simplest, as long as the secondary winding is wound Nx fewer than the rated number of turns. The ratio difference before compensation of the current transformer is replicated, and increasing the current of the secondary winding by fewer turns serves as compensation. The compensation amount is as follows: △f=Nx/(N2-Nx)x100% The ratio difference of the turns compensation team plays a compensating role, and the compensation amount is independent of the secondary load and current size. The compensation turns are generally only a few turns, and the turn compensation should calculate the error between the maximum current low-end secondary impedance and the minimum current high-end secondary impedance. Du Yu's high-precision micro current transformer can compensate for excessive turns even if it only compensates for one turn. At this point, half turn or fractional turn compensation can be used. However, the number of turns of a current transformer is calculated based on the closed circuit passing through the iron core window, and the number of turns of a current transformer is calculated by smashing one by one, without the situation of half a turn. The use of half turn or fractional turn compensation requires the use of auxiliary terminals, such as dual windings, dual iron cores, etc.   Auxiliary iron core compensation The auxiliary iron core compensation has a compensating effect on the contrast difference and angle difference, but the manufacturing process of the auxiliary iron core compensation method is relatively complex.   Capacitor compensation Capacitor compensation can be achieved by directly connecting capacitors in parallel at both ends of the secondary winding of the current transformer. Its contrast difference plays a positive compensation role, and the compensation size is proportional to the X component in the secondary load Z=R+iX, and proportional to the size of the compensation capacitor; It has a negative compensation effect on the cross, and the compensation size is proportional to the R component in the secondary load Z=R+iX, and proportional to the size of the compensation capacitor. Capacitor compensation is an ideal compensation method. In micro precision current transformers, the secondary winding is generally directly connected to the current/voltage conversion of the operation and discharge, and the secondary impedance is basically 0. At this time, the role of capacitor compensation is relatively small. Generally, adding a phase shift circuit in the interpretation of current/voltage conversion can solve the angle difference problem. Users can adjust and calculate the phase shift circuit based on the error data of the voltage reduction in the inspection report of the current transformer that comes with it when it leaves the factory.   There are many compensation methods for current transformers. The compensation of current transformers is an important way to improve the accuracy level of current transformers, and one of the important tasks in designing high-precision current transformers.

In power monitoring, energy billing or relay protection field, you may wonder:does a current transformer really need calibration? Some buyers assume a brand-new CT comes perfectly accurate straight out of the factory, so they skip on-site checks. Others test protection CTs and ignore metering-grade units only. Both habits can create costly problems later. CTs turn large primary current down to smaller, measurable secondary values. When their reading drifts, the energy meter records wrong consumption data, or protection relays may fail to trip during faults. This article breaks down CT calibration in simple terms, so you know when, how often and why it is necessary.   What is Current Transformer Calibration? Calibration for a current transformer is a test process that compares the CT’s actual output against a reference standard. Technicians measure two core indicators: current ratio error and phase error.   Simply put: Ratio error: whether the secondary current matches the expected value Phase error: whether the waveform phase shift stays within the declared accuracy class   The test also checks for loose wiring, insulation damage, core saturation risks or physical defects that affect performance. Calibration is not repairing the CT; it verifies if the unit still meets its rated accuracy specification.   Does Every Current Transformer Need Calibration? Short answer: It depends on the application. Calibration is required for these cases 1. Revenue / billing metering CTs If the CT is used for energy billing between utility companies and end users, calibration is almost always mandatory. Small measurement errors add up over months, leading to billing disputes and financial loss.   2. High-precision power quality monitoring For solar PV plants, energy storage systems and EV charging stations, operators rely on precise current data. Even minor phase error will distort harmonic calculation and power factor readings. Regular calibration keeps data trustworthy.   3. CTs installed in critical protection circuits Protection CTs feed signals to relays that isolate faults. If the CT saturates or outputs incorrect current, relays may not trigger in time, resulting in equipment burnout or blackouts.   4. After installation, maintenance or physical impact Shock during transport, improper wiring, or overcurrent surges can shift CT performance. Calibration after installation confirms it works correctly under real field conditions.   5. Periodic routine inspection Aging insulation, temperature cycling and long-term load operation slowly degrade CT performance. Regular calibration catches drift before it causes failures. Calibration may not be mandatory for low-risk applications   For simple indicator-only systems where  only need a rough current reading and no billing or protection functions, strict formal calibration may not be required. Even so, a basic spot check is still recommended to rule out manufacturing defects.   How Often Should You Calibrate a Current Transformer? There is no universal fixed rule; the cycle is decided by industry standards and site operating conditions. Revenue metering CT: Typically every 2–6 years, follow local power authority requirements CTs inside PV / energy storage / charging stations: Recommended every 1–3 years, heavy load sites shorten the cycle Protection CT: Usually inspected every 3–6 years, or after fault events New custom OEM CT samples: Calibration before mass production, to validate winding and core consistency   Tip: If your CT experiences short-circuit surges, overheating or physical damage, do not wait for the scheduled cycle. Run calibration immediately.   What Happens If You Skip CT Calibration? The risks vary based on the CT’s purpose. For metering CT: Measurement error accumulates, leading to incorrect electricity bills. You may face disputes with clients or power utilities. For protection CT: The relay receives distorted current signals. It may fail to activate during short-circuit events, or falsely trip and shut down normal power supply. For power monitoring: Your data logs become unreliable. You cannot trust power consumption, harmonic and power factor reports used for system optimization.   What Tests Are Included in CT Calibration? Standard calibration covers these main items: 1. Ratio error test at different load current points (20%, 50%, 100%, 120% rated current) 2. Phase error measurement 3. Burden matching verification 4. Winding resistance check 5. Insulation resistance test 6. Saturation test (for protection class CT)   Common Questions About CT Calibration Q: Is factory test equal to calibration? Not exactly. Factory inspection proves the CT passes specs when leaving the workshop. Vibration during shipping and installation may change performance. For billing-grade use, on-site calibration is still required.   Q: Can I calibrate CT myself on site? You can perform simple comparative checks, but official certification requires calibrated reference equipment and qualified labs if you need a formal report for audit or billing purpose.   Q: Split-core / clamp-on CT also needs calibration? Yes. Split-core current transformers have an air gap on the magnetic core. Mechanical gaps can shift after repeated clamping, so they are more prone to error drift and need periodic checks.   Conclusion Not every CT needs formal certified calibration, but any current transformer used for energy billing, protection or precision power monitoring absolutely requires it.   Calibration verifies ratio and phase accuracy, detects hidden damage and avoids expensive operational accidents. When sourcing CT products, clarify your calibration requirements with your supplier upfront. If you need certified calibration reports, specify this requirement at the sample stage.

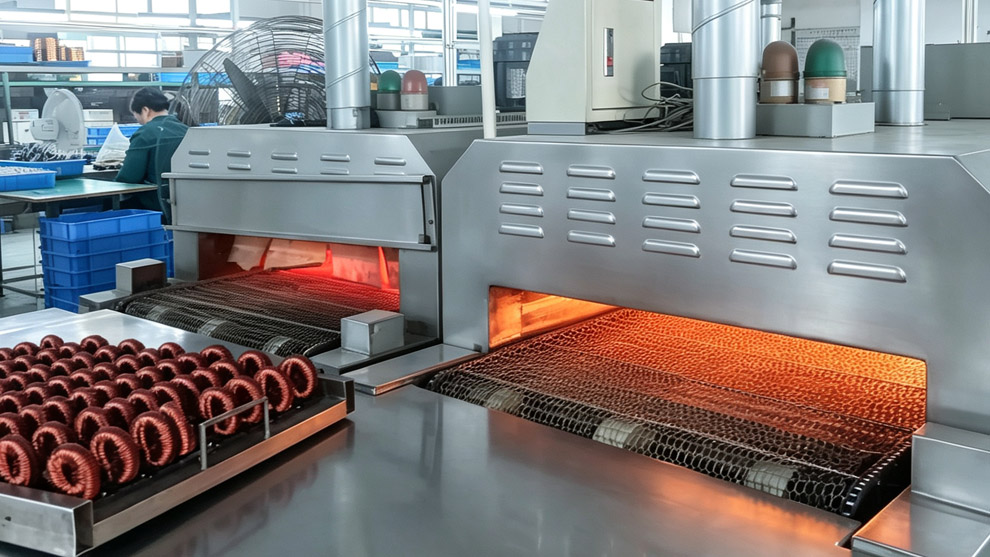

Many engineers know nanocrystalline CTs are more accurate, but few understand why they beat silicon steel or ferrite cores.This post explains nanocrystalline cores in plain English, and why they're the top choice for high-precision current transformers.   What Exactly Is a Nanocrystalline Core? Nanocrystalline material is a type of soft magnetic alloy. Manufacturers melt the alloy and rapidly cool it into thin amorphous ribbon, then apply heat treatment to form tiny nano-scale crystal grains inside the material.This special microstructure gives nanocrystalline unique magnetic features. Compared with conventional magnetic materials like silicon steel (electrical steel) and ferrite, this special microstructure gives nanocrystalline unique magnetic features.For current transformers, that directly translates to better measuring performance.   Key Benefits of Nanocrystalline Core for High Precision CT 1. Ultra-high permeability, lower measurement error Easily capture weak magnetic signals generated by primary current. For metering CTs, cuts both current error and phase error significantly. SiFe cores often show obvious phase shift under small current, which causes big energy reading deviation. Nanocrystalline core maintains stable accuracy even at low load current, which is critical for energy billing metering.   2. Excellent anti-saturation performance Core saturation happens when magnetic flux exceeds the limit of the core material. Once saturated, the secondary current waveform distorts and measurement fails. Nanocrystalline has high saturation flux density together with low coercivity. It can handle large surge current without saturation easily. This property is very valuable for power monitoring, EV charging stations and photovoltaic systems where current fluctuates heavily.   3. Wide operating frequency range Ferrite cores perform well only at high frequency, while silicon steel works mainly for standard 50/60Hz power frequency. Nanocrystalline covers a broader frequency band, suitable for fundamental frequency measurement as well as harmonic monitoring. For projects requiring power quality detection, nanocrystalline CT can accurately sample harmonic signals, which ordinary cores cannot do reliably.   4. Lower core loss Nanocrystalline material has much smaller core loss than silicon steel. Less heat is generated during operation. For enclosed CT installed inside compact cabinets, lower heat helps maintain long-term stability and extend service life.   5. Compact size for same performance With superior magnetic properties, nanocrystalline core can reach the same accuracy level with a smaller volume. This is a big advantage when you need miniature current transformers for PCB devices or slim energy meters. It helps product designers save cabinet space without sacrificing precision. Common Application Scenarios for Nanocrystalline Core CT 1. Smart energy meters and revenue-grade power measurement 2. Solar PV monitoring systems, energy storage BMS current sampling 3. EV chargers and charging pile current detection 4. Power quality analysers, harmonic monitoring equipment 5. High-precision relay protection devices Conclusion The core is the heart of a current transformer. Nanocrystalline core’s excellent permeability, low error and great anti-saturation capability make it the best choice for high precision current transformers, especially for energy metering and power monitoring.   When you request custom CT samples, clearly specify whether you require nanocrystalline core.

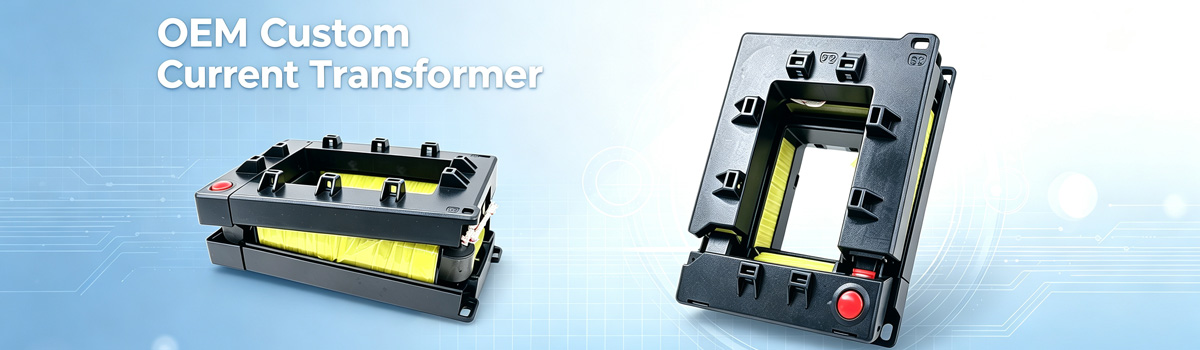

If your standard off-the-shelf current transformers cannot fit your panel design, metering or protection requirements, custom OEM CTs are often the practical solution. Complete specs request helps to will saiving time &cost. This article walks through exactly what details your CT supplier needs from you.   1. Electrical Specifications (The Most Critical Part) This set of parameters defines the core performance of your custom CT. Missing any of these can result in a product that fails your testing. Primary & secondary current ratio: For example, 200A/5A or 10A/4mA. Confirm if you need AC or DC capable models. Accuracy class: Common options include 0.1, 0.2, 0.5, 1.0 for metering; 5P or 10P for relay protection. Make it clear whether high precision is required. Rated burden / output load: State the VA burden or resistance load the CT needs to drive. This directly impacts core design and saturation performance. Rated voltage and frequency: Usually 0.66kV, 50Hz / 60Hz. Specify if system works under special frequency ranges. Saturation requirement: For protection CTs, define the rated accuracy limit factor (ALF). Metering CTs need anti-saturation performance under normal operating current. Phase error & current error limits: Required if you have strict energy metering standards.   Tips: Do not only state the primary current. If your output signal goes to a PLC or meter, tell the supplier what device the CT connects to. It helps them recommend the proper secondary output format.   2. Mechanical & Size Requirements CT dimensions are one of the most common reasons custom samples fail on-site installation. Window inner diameter / opening size: please confirm the hole size for cables or busbars of solid-core toroidal CT, or split-core clamp-on CT . Overall outer dimensions: Height, width, depth. Especially important for compact cabinet installations. Mounting method: PCB mount, bracket fixing, through-hole mounting.  If with fixed footprint requirements,mounting hole spacing request to be provided. Cable lead details: Wire length, wire gauge, wire colour, connector type (terminal block, JST connector, bare ends). Specify if leads exit from a particular side of the CT housing. Housing material and protection grade: Epoxy resin encapsulation, plastic shell, IP rating such as IP54, IP65 for harsh environments.   3. Working Environment Conditions T application environment decides material selection and long-term stability. Suppliers need to know: Operating temperature range: Indoor cabinet, outdoor, high-temperature or low-temperature cold storage. Installation location: Power distribution cabinet, solar inverter, EV charger, energy monitoring device. Humidity, vibration, dust or chemical corrosion risks. Expected service life and insulation requirements. 4. Custom Housing & Brand Requirements (OEM Specific) This section covers your branding and custom appearance needs: Custom logo printing: Brand name, model number, marking content, printing position. Custom model code: Your internal part number to be printed on the product. Housing colour: Standard black, grey, blue or custom colour. Custom packaging: Neutral packing or branded boxes, label design requirements.   5. Order & Certification Information These details help suppliers quote pricing and lead time accurately: Estimated annual quantity, minimum order quantity for the first batch. Target unit price range if you have budget limits. Required certifications: CE, RoHS, IEC, UL etc. Sample requirement: Do you need pre-production samples before mass production? State sample quantity. Delivery term and target lead time.   6. Common Mistakes When Requesting OEM CT 1. Only send current ratio without accuracy and burden requirements → The CT may not meet your measurement precision. 2. Ignore overall dimension, only confirm window size → The finished CT cannot fit inside your cabinet. 3. Fail to mention special environment → The epoxy or plastic shell may degrade quickly in high heat. 4. Unclear secondary wire requirements → Wires too short, wrong connector, reversed wiring. 5. Forget certification requirements → Product cannot pass local inspection for your market.   Conclusion Custom OEM current transformers require clear communication between buyers and manufacturers. When you provide complete electrical, mechanical, environmental and branding information at the start, your supplier can deliver accurate quotations and correct samples faster. This avoids costly rework and keeps your project schedule on track.   If you have dimension drawings, it is always best to attach them together with your specification list. Drawings eliminate most ambiguous descriptions and reduce misunderstanding between both sides.

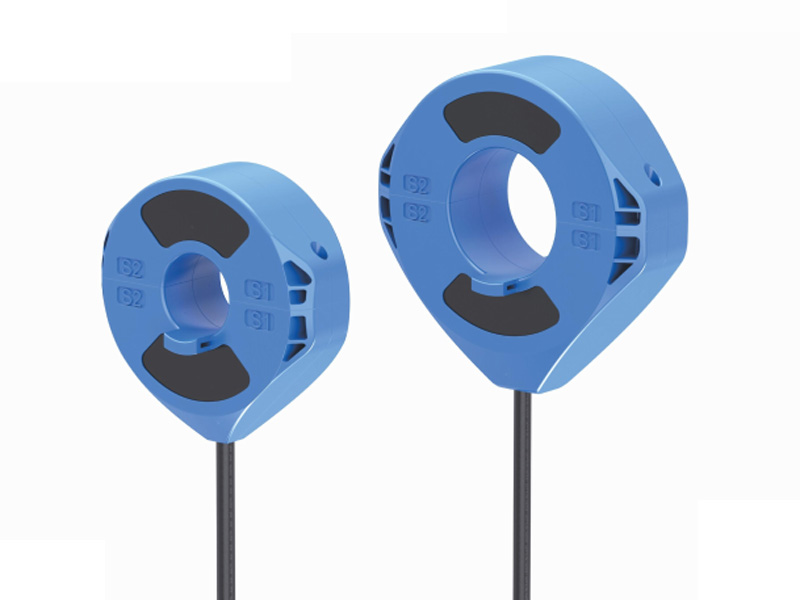

Selecting the correct size current transformer is as critical as matching its current ratio or accuracy class. Some electrical engineers and builders focus only on electrical parameters during component selection, and discover problem during installation period: the current transformer window is too small for cable passed through, or the mounting holes don’t align with pre-planned positions.   Poor size selection does not just slow down on-site wiring. It can squeeze cables, damage insulation, or force awkward mounting that shifts the CT position, which may introduce extra measurement deviation and affect protection performance. Today we guid walks you through the key points of CT size selection, epscially on window diameter and available installation space.   1. CT Window Diameter: The Core Parameter for Cable Routing Current transformer's window (inner hole) is where the primary conductor passes through. For solid core CTs, the cable or busbar must fit fully inside this opening. For split-core / clamp-on CTs, window size decides what range of conductors can be clamped onto without forcing. What to calculate before choosing window diameter 1. Measure the cable outer diameter, including its insulation layer & cable jacket. Don't just copper core size. Thick heat shrink, multiple bundled wires, cable lugs will take extra space. 2. Reserve sufficient margin. Avoid selecting a window size that barely fits cable. Leave space for cable bending, thermal expansion, and easy on-site threading. A general rule: add 20–30% spare space to the cable outer diameter. 3. For multiple conductors: If more than one cable will run through the same CT window, calculate the total occupied space of all cables together. Common mistake:  only check conductor cross-section, ignor thick outer insulation, which lead to the cable failing to feed through the CT on site.   2. Check Installation Space Inside The Cabinet Window diameter is not the only factor. The Current Transformer’s full outer dimension will decide whether it can fit inside your panel or equipment enclosure. Items you need to measure: 1. Overall CT height & width: Make sure no interference with adjacent circuit breakers, terminal blocks or other components. 2. Depth clearance: Many cabinets have limited depth. If the CT sticks out too far, the cabinet door cannot close properly. 3. Mounting footprint and hole spacing: PCB mount CTs have fixed pin spacing; toroidal CTs or encapsulated CTs often use mounting brackets. Confirm the mounting hole positions before ordering. 4. Secondary wire routing space: Remember to reserve space for secondary leads coming out of the CT.   Also consider heat dissipation. When multiple components are packed tightly together, high ambient temperature can influence CT performance. Do not cram CTs into overcrowded zones without thermal allowance. 3. Split-core vs Solid-core CT: Size & Installation Trade-off The installation method also changes how you evaluate CT size. Solid-core toroidal CT: Cheaper and higher precision, but the cable must be threaded through before termination. You need to confirm window size in advance, as you cannot install it after cables are already wired. Split-core / clamp-on CT: Can clip onto existing cables without disconnecting the circuit. But the window opening has a limit. You still must verify that the cable outer diameter is less than the rated window size of the split CT.   If you are retrofitting an existing power panel, split-core CT is often the practical pick, but do not assume it will fit all cables.   4. Practical Checklist Before Finalizing CT Size Run through this simple checklist before confirming your CT model: Measure cable outer diameter (with full insulation) Add spare clearance for cable installation Confirm CT inner window dimension Measure cabinet free space (width, height, depth) Check mounting hole / pin layout Check clearance with nearby devices Confirm whether you need solid-core or split-core type Cross-verify rated current and accuracy class alongside physical dimensions   5. Troubleshooting Common Sizing Issues 1. Cable cannot pass through CT window: Choose next larger window size or switch to split-core CT. 2. CT fits the cable but hits other parts inside cabinet: Select a low-profile CT model or adjust component layout. 3. Mounting holes misaligned: Check datasheet dimension drawing, or pick CT with flexible bracket mounting. 4. Cable tightly squeezed inside window: Risk of insulation damage. Upgrade to larger window diameter.   Conclusion CT size selection balances mechanical fitting and electrical performance. Start from your conductor size to pick the proper window diameter, then validate the overall outer dimension against your cabinet installation space. Taking these measurements in advance avoids costly rework, measurement inaccuracies and delays at site.   When reviewing CT datasheets, always refer to the dimension drawings rather than just simplified descriptions. If your application involves busbars, bundled cables or compact enclosures, double-check both window geometry and full body size before purchase.

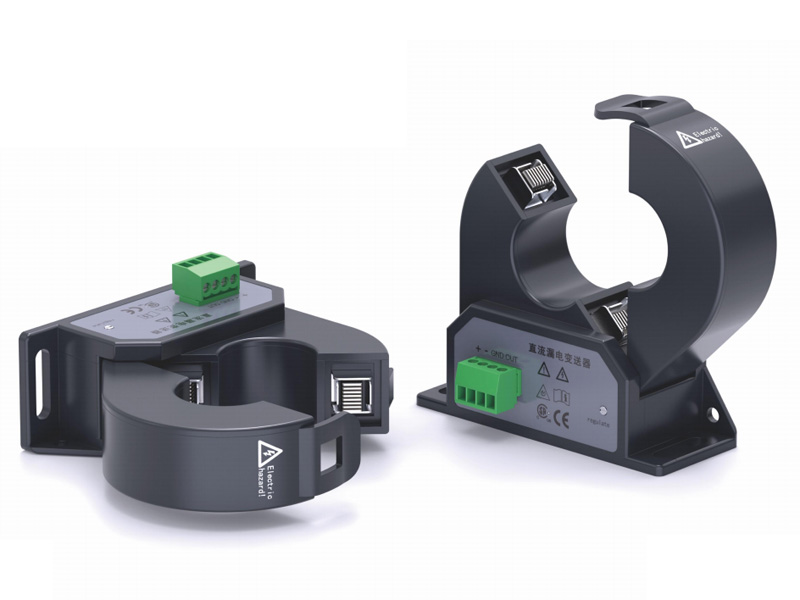

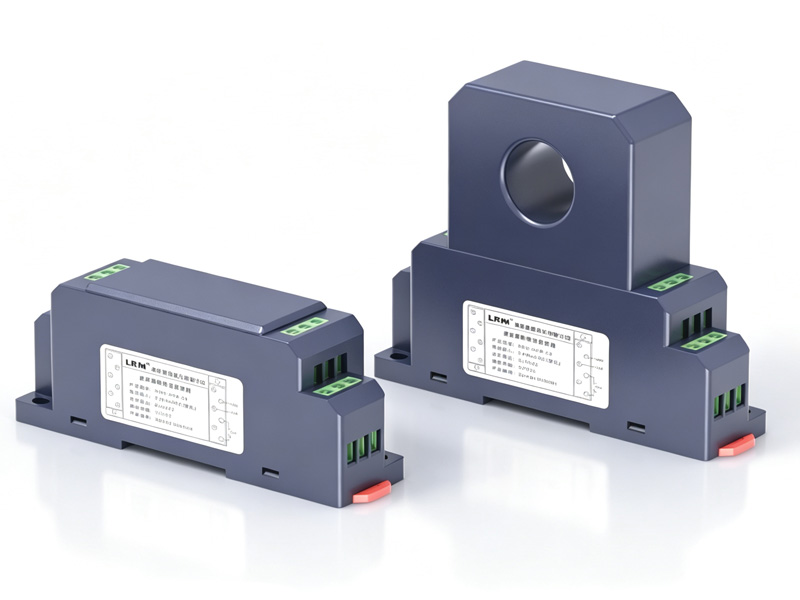

  When working on power‑monitoring, energy‑audit or equipment‑retrofit projects, engineers often raise one practical question: can regular current transformers (CTs) measure DC current?   Many field technicians are familiar with clamp‑on or split‑core current transformers widely used for AC power systems. These devices are cost‑effective, easy to install without cutting cables, and perform reliably for alternating‑current scenarios. But applying them to DC circuits will lead to misleading readings or zero output, and this point is frequently misunderstood.   Why conventional current transformers cannot measure DC? Traditional current transformers operate based on "electromagnetic induction". They rely on continuously changing magnetic flux generated by alternating current in the primary conductor to induce secondary‑side output.   Direct current produces a static, constant magnetic field in the core. Since there is no flux variation over time, the CT secondary winding cannot generate an induced voltage. For this reason, standard iron‑core CTs, whether solid‑core or split‑open type, do not respond to steady‑state DC.   There is another hidden risk. If a large DC flows through the primary cable, it may cause magnetic core saturation. Once saturation happens, the transformer loses measurement accuracy even for superimposed AC components, which may damage downstream metering hardware.     What options exist for DC current measurement? If you need to capture DC current values, you have to pick sensing technologies built for static magnetic fields. Below are the most common industrial‑grade solutions:   1. Hall effect DC current sensors Hall effect sensors detect static magnetic field strength created by DC current. Many are designed as split‑core / clamp‑on structures, keeping the non‑intrusive installation advantage of CTs. They are popular for solar PV systems, battery banks, DC‑charging piles and industrial DC power cabinets.     2. Rogowski coils (Only for AC / pulsed DC) It is worth clarifying: flexible Rogowski coils you see in many catalogs also work on induction principles. They respond to current change rates. They can measure pulsed or fluctuating DC, but cannot read stable, constant DC. This is a very frequent misapplication on site.   3. Shunt resistors Shunt resistors offer high‑precision DC measurement. The main downside is galvanic contact: you must break the circuit for wiring. They are widely adopted inside battery BMS and high‑precision test equipment, but less convenient for retrofitting existing live cables.   Mixed‑flow scenario: measuring AC‑DC superimposed current In real‑world sites such as inverter output, rectifier circuits or aging power equipment, you may encounter current carrying both AC ripple and DC offset. - Ordinary CT: DC component saturates core, AC reading drifts and becomes unreliable. - Open‑loop / closed‑loop Hall sensors: capable of measuring total current including DC offset and AC ripple simultaneously.   Quick practical decision checklist - Measuring pure alternating current? → Standard current transformer works perfectly. - Measuring steady direct current? → Choose Hall‑effect DC sensor, avoid regular CT. - Only measuring pulsed / varying DC? → Rogowski coil may fit your requirement. - Need high‑accuracy lab‑grade DC data? → Consider shunt‑resistor solutions.     To sum up: standard current transformers are designed exclusively for AC current and are not suitable for DC measurement. Trying to deploy them for DC will bring invalid measurements and potential core saturation trouble.   Matching the sensor principle to your actual current type helps you avoid debugging headaches and ensures long‑term reliable data acquisition for energy monitoring, protection and analysis systems.
