Why Nanocrystalline Core Makes High Precision Current Transformer

Many engineers know nanocrystalline CTs are more accurate, but few understand why they beat silicon steel or ferrite cores.This post explains nanocrystalline cores in plain English, and why they're the top choice for high-precision current transformers.

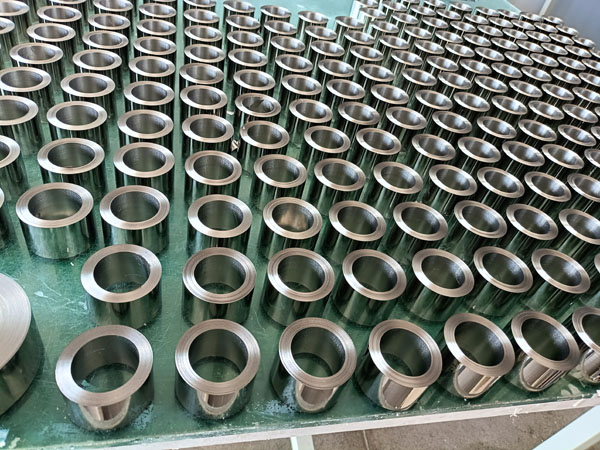

What Exactly Is a Nanocrystalline Core?

Nanocrystalline material is a type of soft magnetic alloy. Manufacturers melt the alloy and rapidly cool it into thin amorphous ribbon, then apply heat treatment to form tiny nano-scale crystal grains inside the material.This special microstructure gives nanocrystalline unique magnetic features.

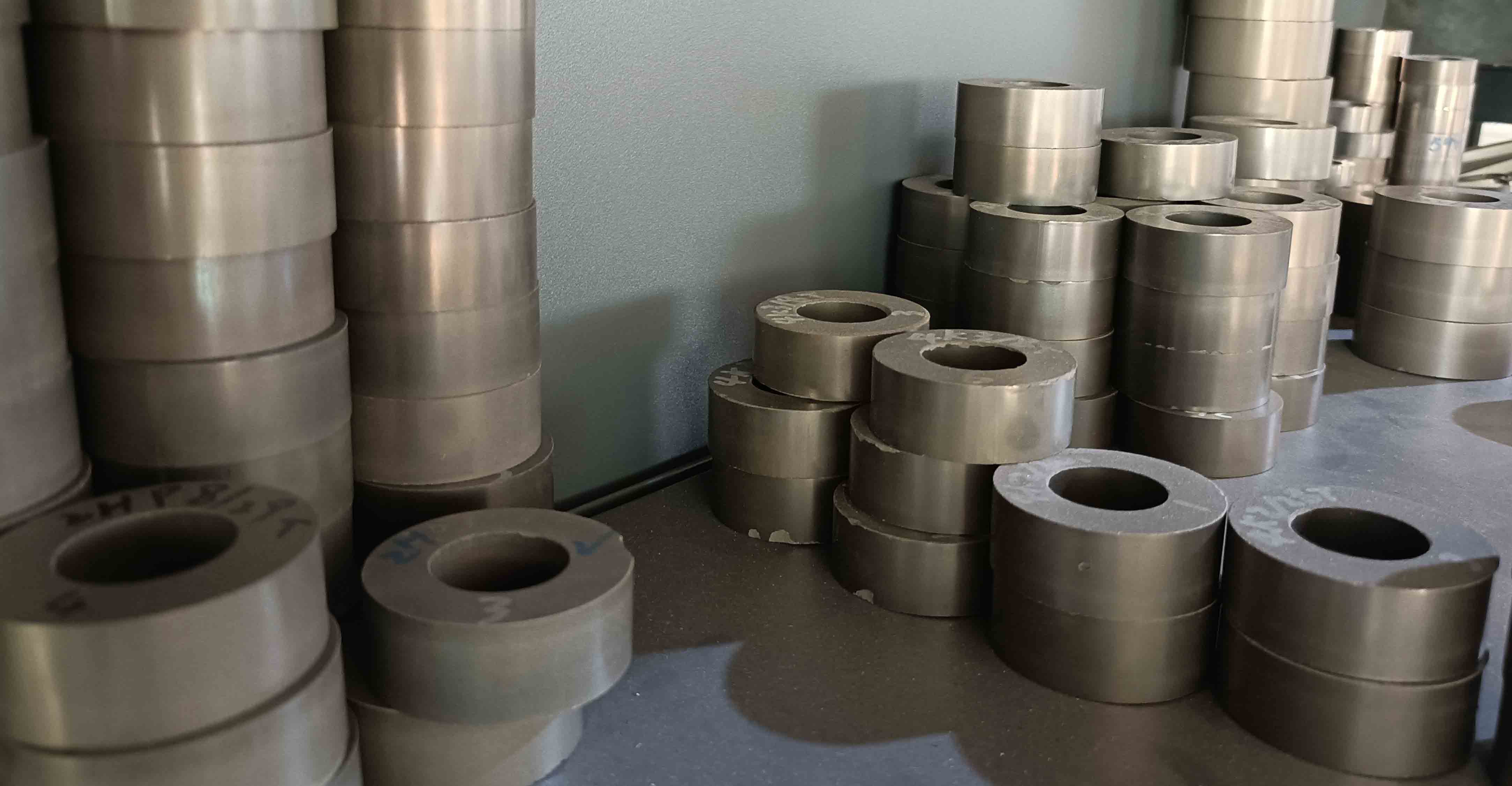

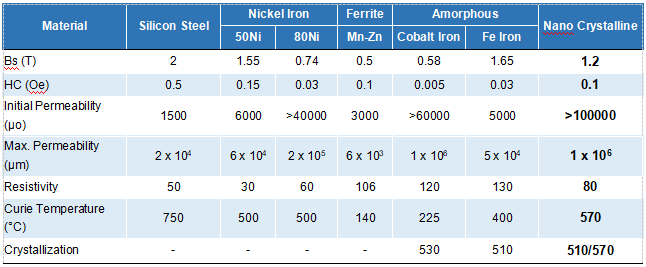

Compared with conventional magnetic materials like silicon steel (electrical steel) and ferrite, this special microstructure gives nanocrystalline unique magnetic features.For current transformers, that directly translates to better measuring performance.

Key Benefits of Nanocrystalline Core for High Precision CT

1. Ultra-high permeability, lower measurement error

Easily capture weak magnetic signals generated by primary current. For metering CTs, cuts both current error and phase error significantly.

SiFe cores often show obvious phase shift under small current, which causes big energy reading deviation. Nanocrystalline core maintains stable accuracy even at low load current, which is critical for energy billing metering.

2. Excellent anti-saturation performance

Core saturation happens when magnetic flux exceeds the limit of the core material. Once saturated, the secondary current waveform distorts and measurement fails.

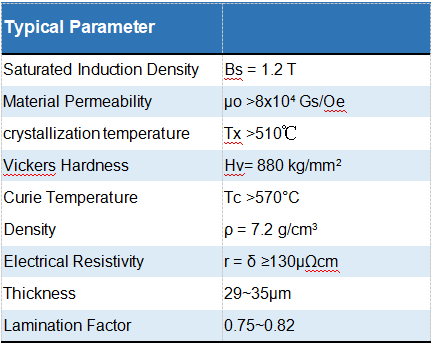

Nanocrystalline has high saturation flux density together with low coercivity. It can handle large surge current without saturation easily. This property is very valuable for power monitoring, EV charging stations and photovoltaic systems where current fluctuates heavily.

3. Wide operating frequency range

Ferrite cores perform well only at high frequency, while silicon steel works mainly for standard 50/60Hz power frequency. Nanocrystalline covers a broader frequency band, suitable for fundamental frequency measurement as well as harmonic monitoring.

For projects requiring power quality detection, nanocrystalline CT can accurately sample harmonic signals, which ordinary cores cannot do reliably.

4. Lower core loss

Nanocrystalline material has much smaller core loss than silicon steel. Less heat is generated during operation. For enclosed CT installed inside compact cabinets, lower heat helps maintain long-term stability and extend service life.

5. Compact size for same performance

With superior magnetic properties, nanocrystalline core can reach the same accuracy level with a smaller volume. This is a big advantage when you need miniature current transformers for PCB devices or slim energy meters. It helps product designers save cabinet space without sacrificing precision.

Common Application Scenarios for Nanocrystalline Core CT

1. Smart energy meters and revenue-grade power measurement

2. Solar PV monitoring systems, energy storage BMS current sampling

3. EV chargers and charging pile current detection

4. Power quality analysers, harmonic monitoring equipment

5. High-precision relay protection devices

Conclusion

The core is the heart of a current transformer. Nanocrystalline core’s excellent permeability, low error and great anti-saturation capability make it the best choice for high precision current transformers, especially for energy metering and power monitoring.

When you request custom CT samples, clearly specify whether you require nanocrystalline core.
