LRM43-130 Energy Taking Transformer

Adopt self-fit flat structure, when the electric CT is closed, the iron core surface will be automatically flat, reduce the assembly time and working noise, and improve the electric performance.

Adopt rotating shaft structure combined with anti-falling screws, easy to install.

Using silicone waterproof ring, improve the anti-rust ability of electric CT,reduce the risk of loud noise and equipment offline due to rust of electric CT.

Product Feather

• Automatic flat fit structure
• IP67 protection grade
• Shaft opening and closing structure, easy installation
• High electrical performance
• Low working noise
• High temperature resistance, aging resistance
• PC+Fiber material

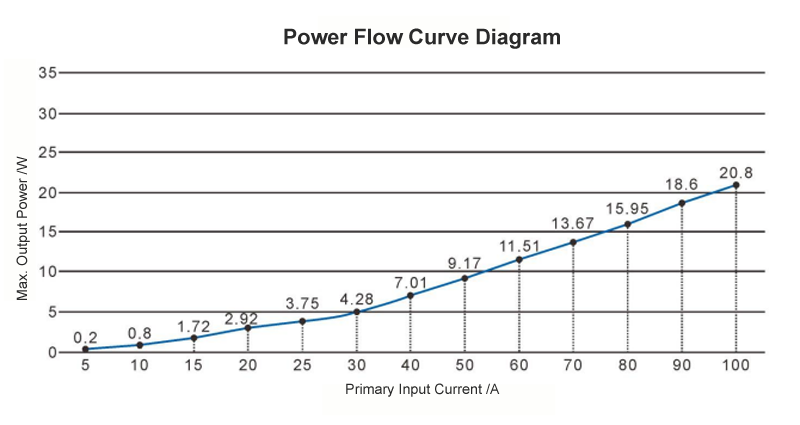

Power Current Diagram

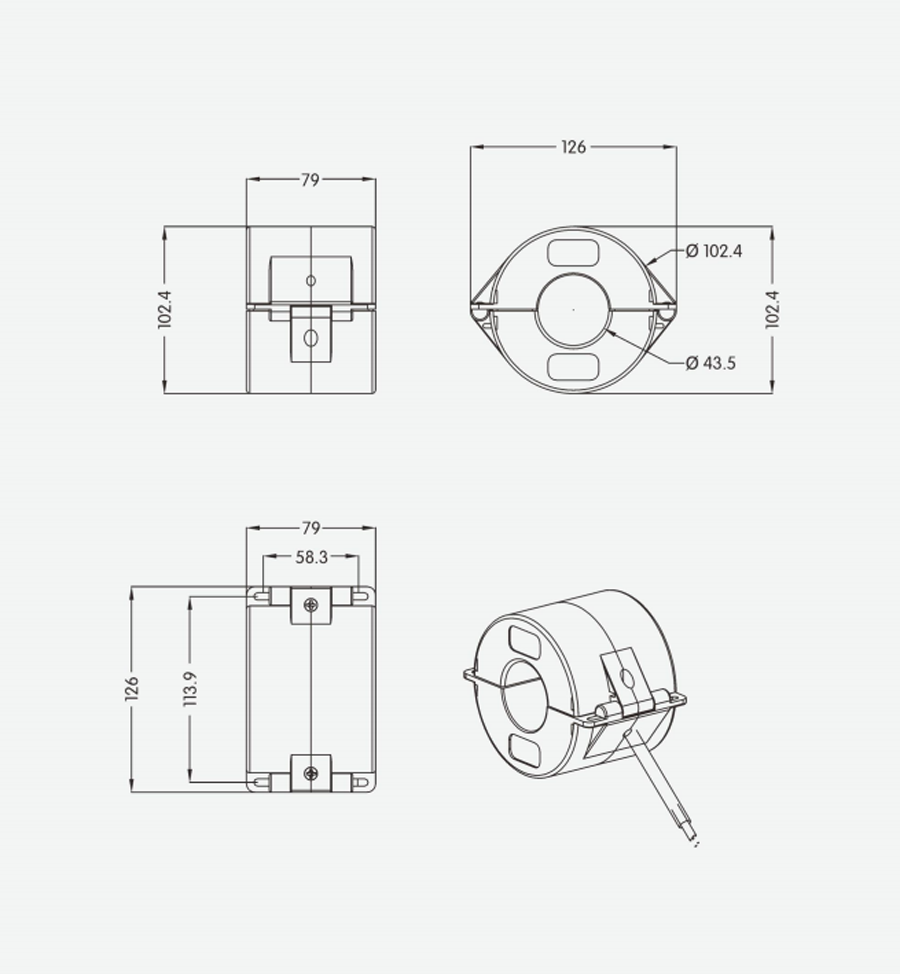

Outline and Installattion Dimensions
