SEN-ZLCT DC Leakage Current Isolation Transformer

Name: SEN-ZLCT DC Leakage Current Isolation Transformer
Availability: InStock

The product is perforated input single-channel DC leakage current isolated transmitter. The measured DC current signal is isolated by a high-precision isolation device, and the output is linear 0~5V,0~10V, 0~20mA,4~20mA and other standard signals. It is widely used in power supply equipment, power grid monitoring, industrial control monitoring system, railway signal system and other industries.

Inquiry Now

Product Features

With high precision, high isolation, how temperature bleaching, low power consumption and other characteristics.
Exquisite and compact appearance, the width of the product is only 28mm, suitable for integrated installation
Input and output to achieve electrical isolation, isolation voltage up to 2500VDC or above.
Strong anti-interference ability, input, output, power supply can withstand surge voltage impact.
With a variety of signal output modes, support 0~5V, 0~10V, 0~20mA, 4~20mA output and son on.
With a variety of power supply models, support +12VDC, +15VDC,+24VDC,220v.

Technical Parameter

Project	Parameter
Accuracy Level	1
Auxiliary Power Supply	+12VDC,+15VDC,+24VDC,220VALUE((Seectable)
Input Range	DC20mA ~1000mA ( Customized)
Output Signal	0~5V, 0~10V, 0~20mA, 4~20mA ( Slectable)
Ambient Temperature	-10°C ~ +60°C
Load Capacity	Voltage output ≥2KΩ Current Output ≤250Ω
Static Power Consumption	≤0.3W
Rated Power Consumption	≤0.7W
Response Time	DC2500V
Coefficient of Temperature Drift	≤100ms
Lighting Strikes and Waves Surge	500PPm/
Product Shape	P type
Shell Material	ABS Flame Retardant
Installation Mode	Standard 35mm DIN rail

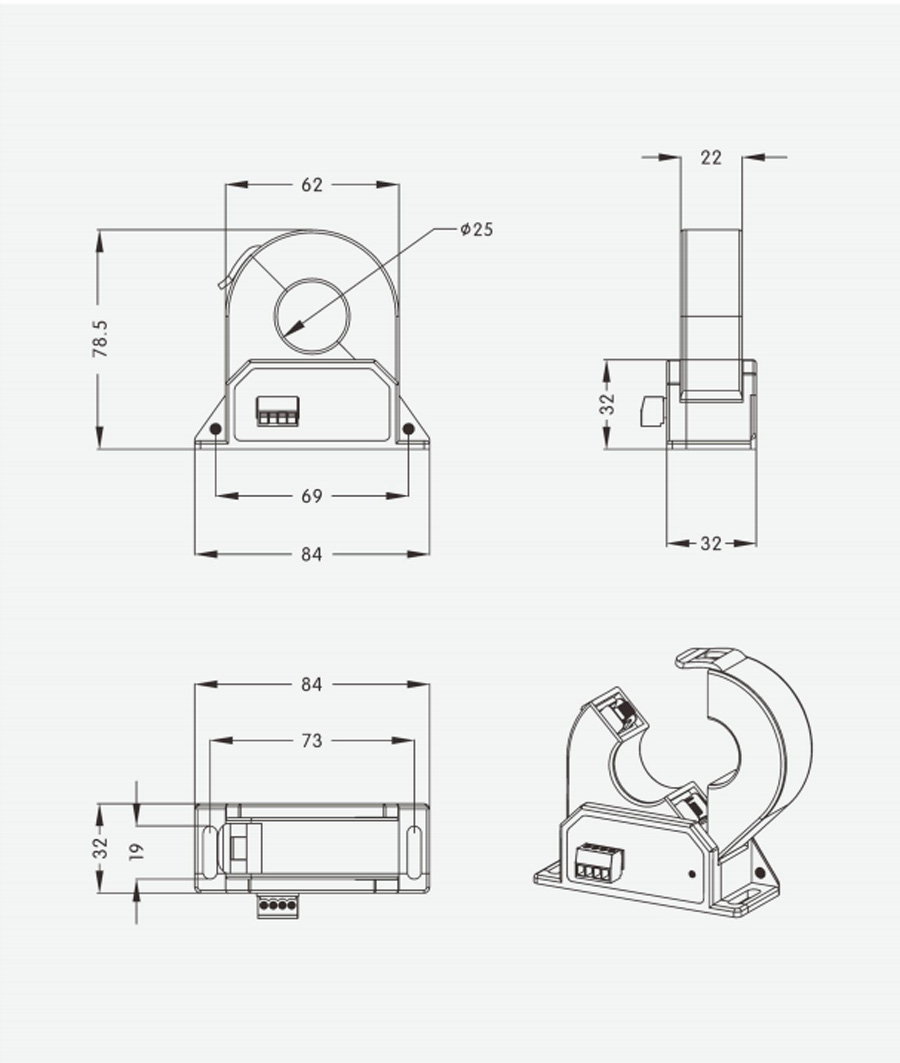

Outline and Installation Dimension
