LRM-TDSBK Overhead Transmission & Power Taking Device

Name: LRM-TDSBK Overhead Transmission & Power Taking Device
Availability: InStock

Overhead transmission & power taking device adopts aluminum ally shell, open structure, suitable for 35KV and above voltage overhead transmission line above, through the principle of electromagnetic induction, to obtain low voltage, safe working power supply, and photovoltaic panel auxiliary for the monitoring device to provide power.

Inquiry Now

Product Features

Strong Power Taking Ability

Using 90.5*56*64mm silicon steel, core, 20A electrical performance >4W

CT shell is made of nylon and fiber material, through the unique structural design and iron core procession technology, to ensure reliable contact between the iron core and the bottom, electricity strong ability, using waterproof ring structure, while silicon steel core cutting surface to strength anti-rust treatment, to ensure that the electric CT long term stable and reliable work.

Integrated Appearance Design

The whole machine is highly integrated, integrated design, exquisite appearance design, beautiful, protection level IP66.

Convenient Installation Design

Upper and lower shell hinge design, more convenient installation, adjustable buckle fixed, suitable for different wire diameters.

Conductive Rubber Buckle

According to different transmission wire cable diameter, using different internal diameter of conductive rubber buckle, the device is locked on the cable, while achieving equal potential connection.

Application Field

Transmission overhead line fault location device
Transmission icing monitoring system
Transmission galloping monitoring device
Transmission video monitoring device

Technical Parameter


Work Power Supply	Power Supply	Voltage Output: 5V		Power Output: 15W
	Lithium Battery	Rated Voltage: 6.4V		Nominal Capacity: 6AH
Energy Harvesting CT	Power supply capacity	20A>4W		10A>1.5W
	Protection Level	IP67
	Inrush Current	31.25KA/4S		15KA/2S
	Continuous Current	IP67
Solar Panel	Standard Power	6.0W(±5%)
	Standard Voltage	12V(±10%)
	Conversion Efficiency	22%
Current Transformer	Power Frequency Current	15KA	Frequency: 20~1K	Tolerance: <1%,±5A
	Traveling Wave Current	5KA	Frequency:1K~2M	Tolerance: <1%,±2A
	Hidden Current Hazard	5A	Frequency: 10K~5M	Tolerance: <5%,±0.01A
Scope of Application	Voltage Level	35KV and above
	Total Weight	<5KG
	Overall Dimensions	OD142mm Length 315mm
Work Conditions	Ambient Temperature	-40°C~+85°C
	Relative Humidity	1%~100%
	Afraid of heights	≤5500m

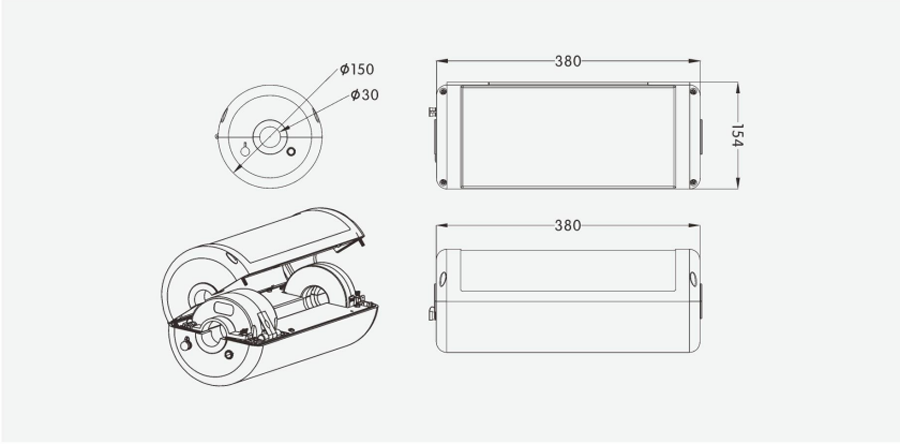

Outline and Installation Dimensions
