LRM-WDHBK Overhead Distribution Network Power Taking Device

Name: LRM-WDHBK Overhead Distribution Network Power Taking Device
Availability: InStock

The power taking device of the overhead distribution network is an open-type structure, which is installed on the overhead distribution line (6KV ~3KV) through the insulated rod. Through the principle of electromagnetic induction, the low voltage and safe working power supply is obtained, and the photovoltaic panel is assisted to provide power for the monitoring device.

Inquiry Now

Product Features

Strong Power Taking

96*56*35 nanocrystals.

Through unique structural design and core processing technology, to ensure reliable contact between the top and bottom of the core, and strong power extraction ability;

The upper and lower shell through the screw rod rotation to achieve the perfect fit of the upper and lower core, allowing a large range of movement of the core, can automatically adjust the upper and lower core to ensure the upper and lower iron reliable bonding.

High Protection Level Design

The O-ring is used to seal the lower port of the shell to effectively protect the water from entering, and the bottom cover can be opened with high protection level; hidden PCB connection cable design, avoid direct exposure of the connection line, effectively improve the life.

Automatic Wire Clamp Function

Wire clamp unique design can meet 8mm~30mm wire diameter.

Single Link Locking Structure

Single connecting rod operation mode, easy to install, close fitting.

Technical Parameter

Induction Power CT		Solar Panel
Power Supply Performance	Single CT: 5A 0.35W	Rated voltage	12v ±10%
	Dual CT: 5A 0.7W	open-circuit voltage	15.6V ±10%
Core Size	OD96ID56H35 mm	output power	3.5W
Winding Details	Dia.0.8mm Enameled Wire,100Ts	operating current	358mA ±10%
Terminal	VH3.96 2PIN	conversion efficiency	22.50%
Lead Wire	Black & Red Color, AWG18 Silicon Wire	size	203.8103.82.8mm Tolerance ±0.5mm
Weight	1KG	working method
Anti-Rust Treatment	Cutting surface with reinforced rust prevention treatment Epoxy powder spraying on the surface of nanocrystalline core	packaging method	Tempered glass+EVA+battery cells+PCB
Processing Instructions		terminal block	XH2.54 2PIN
Current sensor (configuration one)		Current sensor (configuration two)
Single high-precision power frequency current sensor		Power Frequency
Transformation Ratio	1000:01:00	Range	1000A
measurement accuracy	0.2S	Frequency Range	20~2KHz
Frequency Range	20~2KHz	Accuracy	1%
Single Traveling wave current sensor		Traveling Wave
Range	600A	Range	600A
Frequency Range	2K~2M	Frequency Range	2K~2M
Measurement Accuracy	1%	Measurement Accuracy	1%
Terminal Block	XH2.54 2PIN	Terminal Block	XH2.54 2PIN
Power Supply Strip		Battery
Voltage Output	5V±10% ( Adjustable)	Type	Polymer lithium battery
Max. Power	15W±10%	Capacity	3AH+3AH Dual battery
Charge Current	0.8A Max	Standard Voltage	6.8V
conversion efficiency	>92%	Cut off Voltage	7.2V
Current Surge	31.5KA/4S, 15KA/2S
Input Protection	Surge safety protection circuit

Take the power supply board test, adjust the primary current size, and measure the corresponding maximum output power through the electronic load.

Primary Current	Single CT Max. Power Output	Dual CT Max. Power Output
5A	0.35W	0.7W
10A	0.82W	1.7W
15A	1.26W	2.7W
20A	1.8W	3.8W

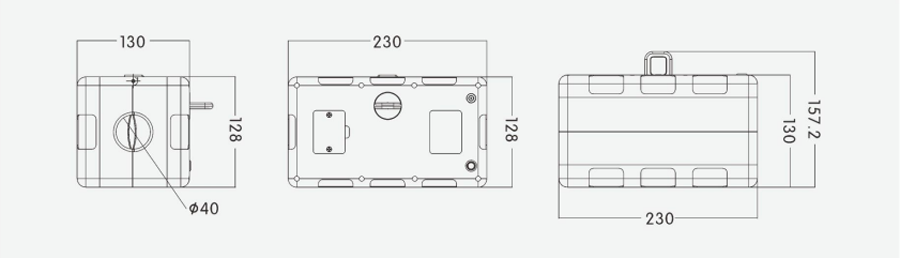

Outline and Installation Dimension
