KHF200 Visual comprehensive monitoring device for distribution network

Product Features

• High precision fault location

Based on the principle of double ended traveling wave fault location, precise fault distance measurement is carried out with a fault location error of less than 100 meters.

• Panoramic three eye monitoring

Adopting a front view, bottom view, and rear view design, it achieves panoramic visual monitoring in all directions without blind spots.

• Intelligent algorithm recognition

A high-precision intelligent algorithm shell based on millions of training samples can autonomously complete risk identification and information push.

• Sound and light warning control

Equipped with speakers and warning lights, supporting linked sound and light alarms, remote voice calling, and achieving remote control of the scene.

• Portable electric installation

Electric remote control installation with adaptive wire clamping structure, closed self-locking structure, achieves safe and efficient live installation.

• Intelligent fault recognition

Extract multidimensional features such as fault amplitude, frequency, and phase, and combine historical feature libraries and AI algorithms to accurately identify fault types.

Technology Parameter

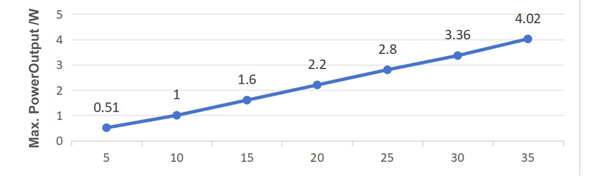

Power Curve

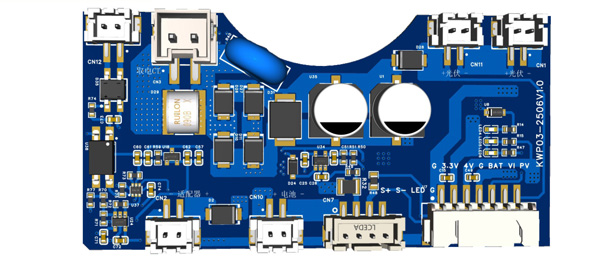

Power Management board

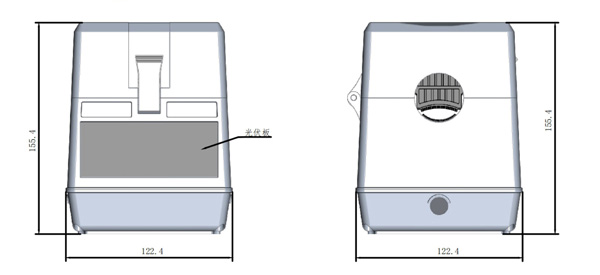

Outline and Installation Dimensions
