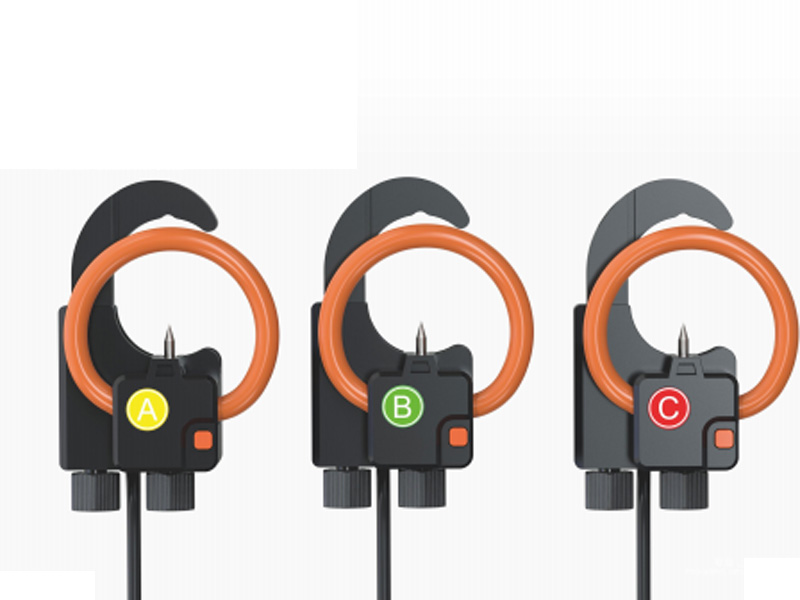

SEN-XSLS-CJ State Grid Guide Rail Table Roche Coil

Name: SEN-XSLS-CJ State Grid Guide Rail Table Roche Coil
Availability: InStock

SEN-XSLS-CJ digital Roche coil sensor, used for the electronic measurement of AC Current. The error due to the position of the measured conductor within the aperture and the error due to the proximity of the external conductor are greatly reduced using magnetic shielding techniques. It is a kind of direct alternating current of the main circuit under test into DC4~20mA or RS485 digital signal output accordingly to linear proportional output, fast response, small volume, small power consumption, frequency response width, anti-interference, has the advantages of lighting wave and shock wave protection.

Inquiry Now

Product Feature

Adopt magnetic shielding flexible core piercing structure,the current transformer and current transmitter are combined into one body design.
Six comprehensive protection functions: input overload protection, output over-current protection, long short circuit protection, working power over-voltage protection, working power reverse connection protection, transient surge current TVS protection.
Intelligent monitoring system for load current of generators, low-voltage distribution cabinets, air conditioners, fans, etc.
High reliability, high stability, high cost performance.

Performance Index

Electrical Parameters
Measuring Range	0~400A
Fine Degree	0.5% (Special can be customized)
Aperture Size	50mm, 80mm, 210mm, 220mm (Special can be customized)
Output Signal	DC4~20mA, DC0~20mA, DC0~10V, DC0~5V, 485( Special can be customized)
Load Capacity	Voltage output: 5mA, Current output: 6V
Response Time	25ms
Isolation of Pressure	3KV/50Hz, 1Min
Electrical Source	+24V,+12V

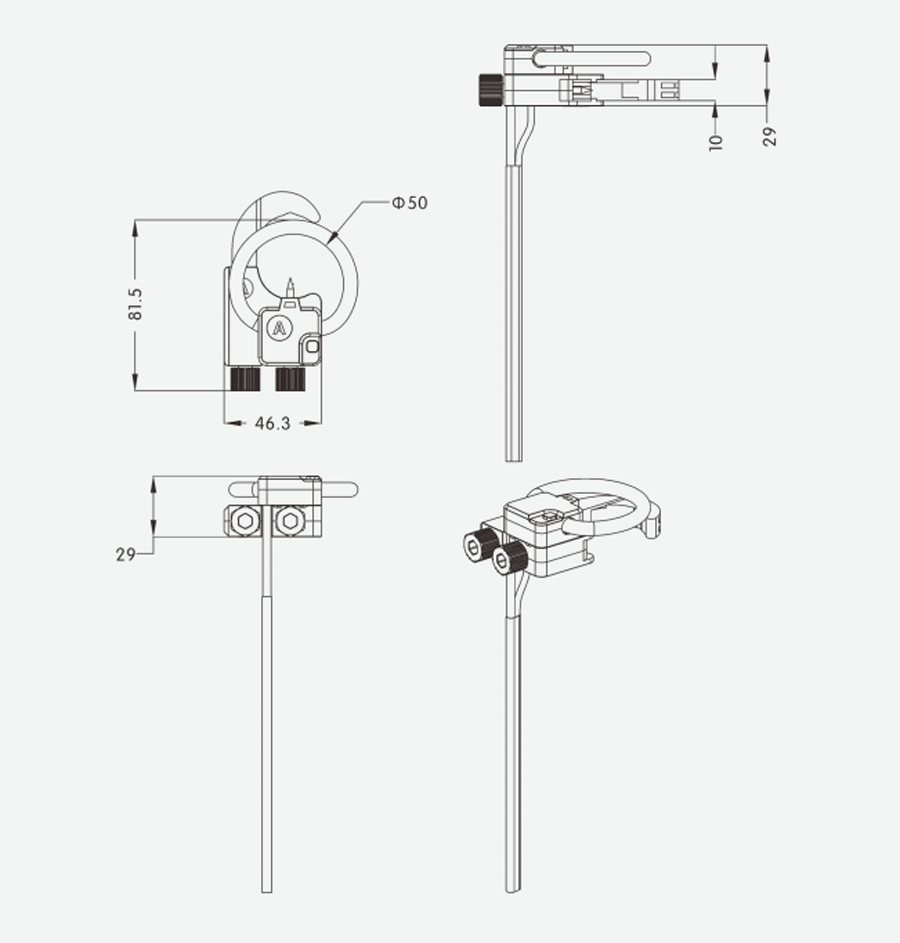

Outline and Installattion Dimensions
