SEN-LSHL1 Four-In-One Traveling Wave Positioning Sensor

Name: SEN-LSHL1 Four-In-One Traveling Wave Positioning Sensor
Availability: InStock

The Traveling Wave Positioning Sensor is a high-speed fault detection device used in power transmission and distribution systems. It operates by capturing the high-frequency transient traveling waves generated when a line fault (e.g., short circuit or lightning strike) occurs. These waves propagate along the transmission line at near-light speed.

Inquiry Now

Current sensor for distributed fault location devices. Power frequency, traveling wave and hidden current sensors are integrated to reduce structure volume and optimize device space.

At same time, combined with the corresponding four-in-one integrator module, the processed signal can be directly sampled by ADC.

Product Feather

Small size and light weight

Multi-sensor integration

Rotary shaft opening and closing structure,easy to install

IP67 waterproof structure

Technology Parameter

Project	Power Frequency Current	Traveling Wave Current	Hidden Current	Voltage
Current Range	15KA	5KA	1mA~5A	/
Frequency Range	20~1 KHz	1K ~20MHz	10K~5MHz	20~1KHz
Precision	±5% ±5A	±5% ±2A	±10% ±0.01A	±10%

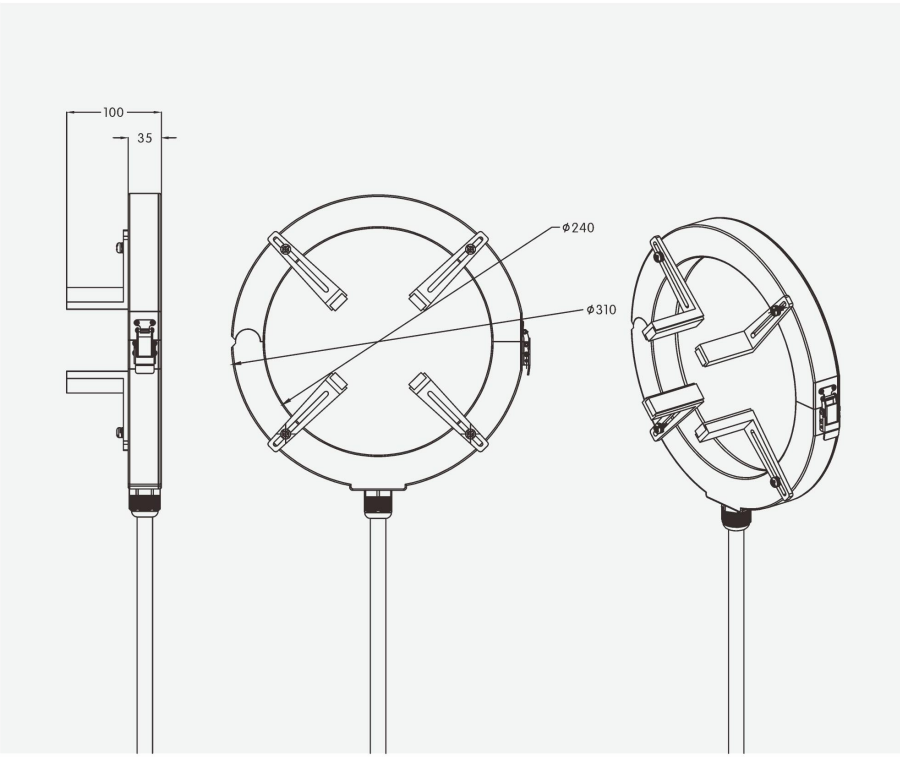

Outline and Installattion Dimensions
