ICT-HEYK Circular Open-Close Type Hall Sensor

Name: ICT-HEYK Circular Open-Close Type Hall Sensor
Availability: InStock

The circular open-closed hall current sensor is mainly suitable for the isolation and conversion of complex signals such as AC, DC, pulse, etc. Through the Hall effect principle, the converted signal can be directly collected and accepted by carious acquisition devices such as ad, DSP, PLC, secondary instrument etc., with fast response time, wide current measurement range, strong overload capacity, good linearity and strong anti-interference ability. Easy to install, removable installation.

Inquiry Now

Product Features

Industrial grade 0.5% accuracy.
Six comprehensive protection functions: input overload protection, output over-current protection, long time short circuit protection, over voltage protection of working power supply, reverse connection protection of working power supply, transient surge current TVs protection.
Intelligent monitoring system for load current of generator, low voltage distribution cabinet, air conditioner, fan, etc.
High reliability, high stability and high cost performance.

Scope of Application

Suitable for current monitoring and battery applications, inverter and solar power management system, DC panel and DC motor drive, electroplating, welding applications, inverter, UPS servo control system current signal acquisition and feedback control.

Performance Index

Electrical Parameters
Measuring Range	0~1000A
Accuracy	0.5% ( Other precision can be customized)
Aperture Size	20mm, 35mm, 45mm, 55mm, 72mm
Output Signal	DC4-20mA, DC0-20mA, 0~10V, 1~10V, 0~5V, 1~5V,0~1V, 0~2V ( Customzied Supported)
Load Capacity	Voltage Output 5mA, Current Output 6V
Response Time	200mS
Isolation and withstand voltage	3KV/50Hz, 1Min
Power Supply	±15V,±12V, ±24±,+24V,+12V

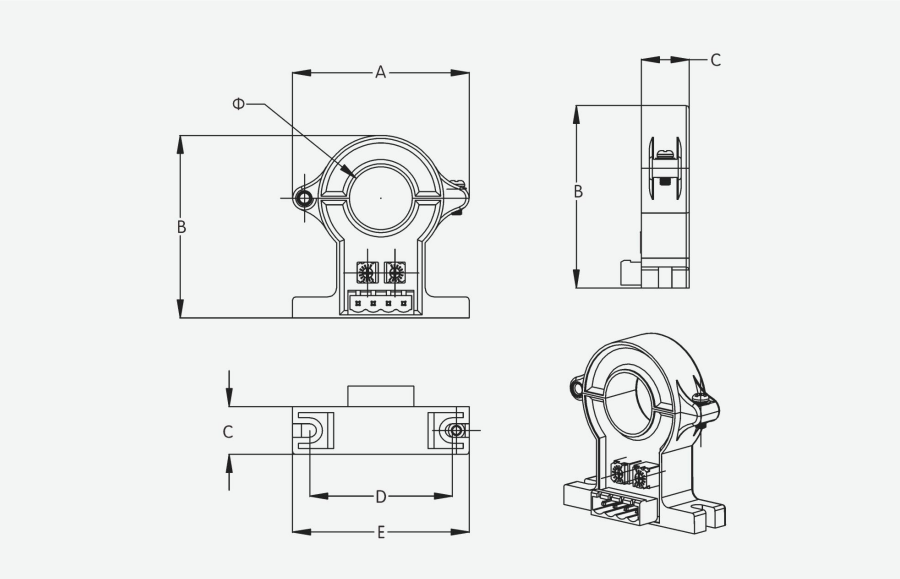

Outline and Installation Dimensions

Model & Specification	Rated Input	Rated Output	Accuracy Class	Dimensions (mm)
Model & Specification	(A)	(mA/V)	Accuracy Class	Φ	A	B	C	D	E
HEKY-20	100A 200A 400A 800A 1000A 2000A	DC4-20mA DC0-20mA 0~10V 1~10V 0~5V 1~5V 0~1V 0~2V	0.5 1.0	21	59	31	16	48	59
HEYK-35				35	71	82	16	66	78
HEYK-40				40	84	94	18	75	89

Packaging & After-sales Service

All products are strictly tested before delivery with complete inspection reports. We adopt professional anti-static and shockproof packaging to ensure product safety during international transportation.

We support OEM & ODM customized services, providing one-stop solutions from design, production to technical after-sales support. Long-term stable supply, fast delivery and professional technical guidance are available for global customers.

If you need detailed datasheet, dimension drawing, test report or customized solution, please feel free to contact us.

We provide free sample testing and professional technical support for global partners.
