SEN-HE Hall Current Transformer

Name: SEN-HE Hall Current Transformer
Availability: InStock

Hall current sensor is mainly suitable for the isolation and conversion of complex signals such as AC, DC, pulse, etc. Through the Hall effect principle, the converted signal can be directly collected and accepted by carious acquisition devices such as ad, DSP, PLC, secondary instrument etc., with fast response time, wide current measurement range, high precision, strong overload capacity, good linearity and strong anti-interference ability.

Inquiry Now

Product Features

Industrial grade 0.5% accuracy.
Six comprehensive protection functions: input overload protection, output over-current protection, long time short circuit protection, over voltage protection of working power supply, reverse connection protection of working power supply, transient surge current TVs protection.
Intelligent monitoring system for load current of generator, low voltage distribution cabinet, air conditioner, fan, etc.
High reliability, high stability and high cost performance.

Scope of Application

Suitable for current monitoring and battery applications, inverter and solar power management system, DC panel and DC motor drive, electroplating, welding applications, inverter, UPS servo control system current signal acquisition and feedback control.

Performance Index

Electrical Parameters
Measuring Range	0~1000A
Accuracy	0.5% ( Other precision can be customized)
Aperture Size	20mm, 35mm, 45mm, 55mm, 72mm
Output Signal	DC4-20mA, DC0-20mA, 0~10V, 1~10V, 0~5V, 1~5V,0~1V, 0~2V ( Customzied Supported)
Load Capacity	Voltage Output 5mA, Current Output 6V
Response Time	200mS
Isolation and withstand voltage	3KV/50Hz, 1Min
Power Supply	±15V,±12V, ±24±,+24V,+12V

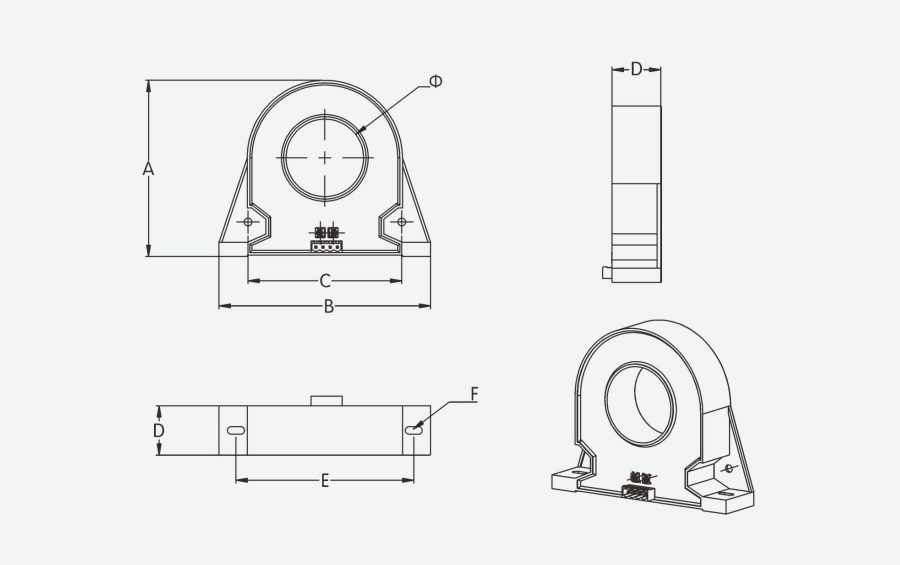

Outline and Installation Dimensions

Model & Specification	Rated Input	Rated Output	Accuracy Class	Dimensions (mm)
Model & Specification	(A)	(mA/V)	Accuracy Class	Φ	A	B	C	D	E	F
HE-12	5A 10A 50A 100A 200A 400A 800A 1000A 2000A 3000A	DC4-20mA DC0-20mA 0~10V 1~10V 0~5V 1~5V 0~1V 0~2V	0.5 1.0	12	44	59.5	40	20.8	50	7xM5
HE-20				20	58	68	50	20	54	7xM5
HE-25				25	70	80	57	22	69	7xM5
HE-35				30	89	99.5	75	30	84.5	7xM5
HE-45				40	102	120	87.5	32.5	104.5	12XM5
HE-55				55	125	150	109	35	106	12XM5
HE-72				72	151	174	134.5	42	149	12XM5
