SEN-CTKC4 Puncture Current Transformer (With Wireless Control Module)

Name: SEN-CTKC4 Puncture Current Transformer (With Wireless Control Module)
Availability: InStock

Puncture current transformer (with wireless control module) is installed online without power failure, with built-in current transformer, electric needle, temperature sensor, diversified integrated design concept and convenient installation. It’s mainly used in power transformation and installation projects. All manual operation places are insulators, so the installation is safe, convenient and simple. When the puncture current transformer is installed, the measure line passed through the middle hole, and the current signal is output after passing through the transformer, which is converted into the required voltage signal by the sampling resistance and output as lead.

Inquiry Now

Product Features

It is easy to install, low cost, safe and reliable, maintenance free.

The joint is completely insulated and can be living working. It can branch at any position of the cable.

The joint is resistant to distortion, shock, corrosion and aging.

The comprehensive benefits is obvious, and the cost performance is better than the traditional connection method.

Scope of Application

Electrical fire monitoring system, fire equipment power supply monitoring system, intelligent power system, smart grid, substation transformation, environmental protection detection, small current grounding system, relay protection, motor protection system.

Performance Index

Electrical Parameters		Mechanical Parameters
Work Frequency	50~3000HZ	Shell	PC/PA Flame Retardant 94-V0
Rated Input	0~600A	Puncture needle	304 Stainless Steel
Rated Output	0-600A	Locking Knob	Stainless Steel 304 /PA compression plate
Output Cable	RJ45 or shielded wire	Construction plan	Fix the knob to lock the cable
Temperature NTC	10K/50K/100K	Work Temperature	-12°C ~ +70°C
Operation Measurement	Puncture (Temperature)	Connection Mode	Single Sheath Wire

Rural Power Grid Transformation, energy efficiency monitoring, smart power system.

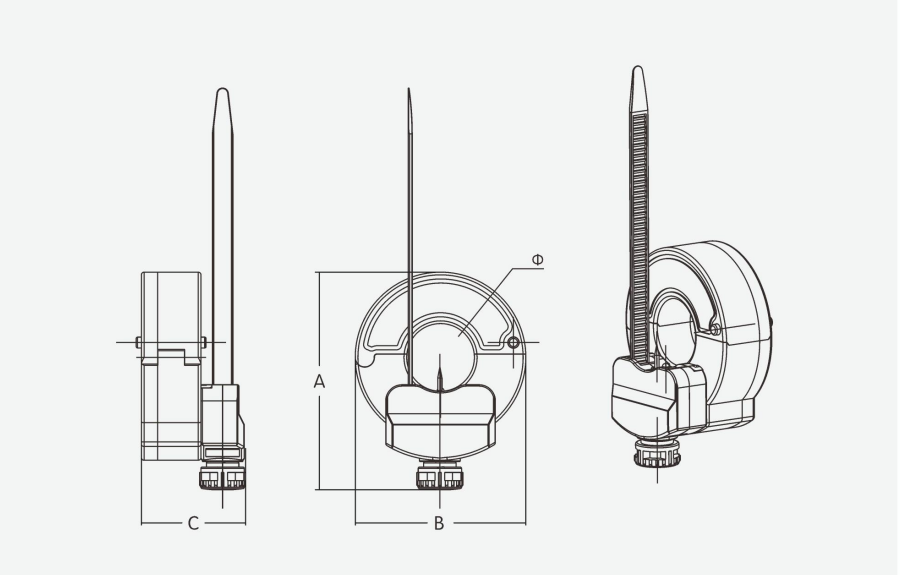

Outline and Installation Dimensions

Model & Specification	Rated Input	Rated Output	Accuracy Class	Dimensions (mm)
	(A)	(mA/V)		Φ	A	B	C
CTKC4-25	50A	0~1V 0~100mA	0.1 0.2 0.5 1.0	25	80	63	38
	100A
	250A
CTKC4-36	400A			36	91	76	38
	600A
	800A
