SEN-CCB3 Busbar Puncture Wire Clamp (With Temperature)

Name: SEN-CCB3 Busbar Puncture Wire Clamp (With Temperature)
Availability: InStock

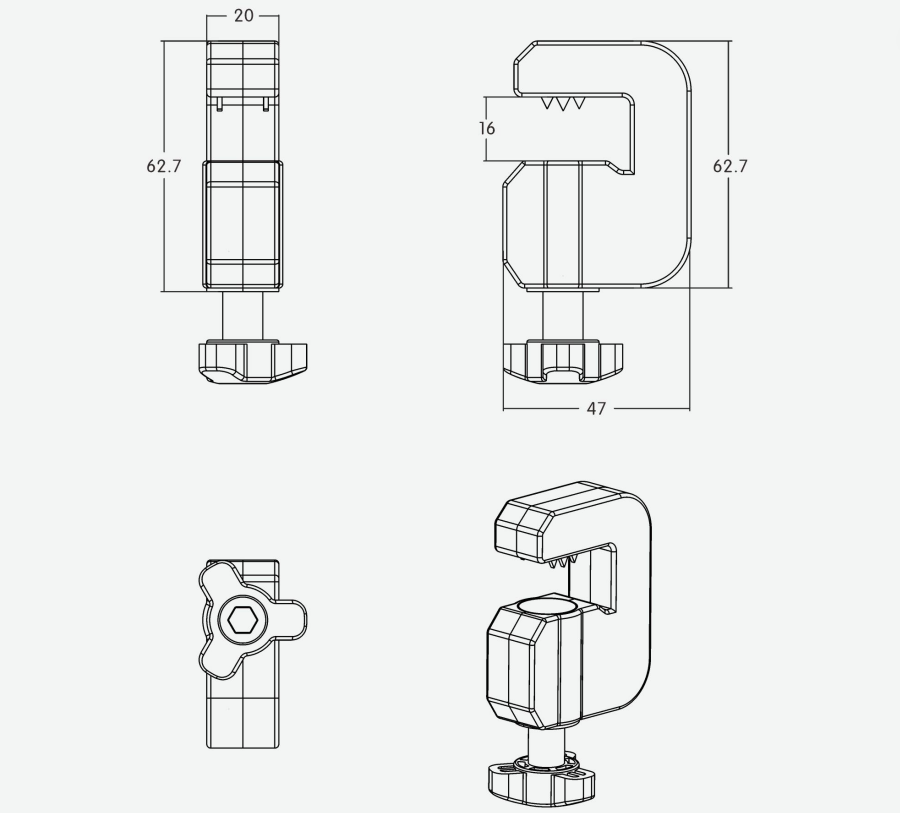

The insulation puncture clamp is mainly composed of reinforced shell, stainless steel puncture needle, sealing pad, waterproof silicone grease, knob, stainless steel bolt and locking plate knob. When the cable needs to be powered, clip the puncture plate into the branch line of the cable. After determining the branch position of the main line, rotate the fixed plated. After locking the plate, rotate the puncture knob to contact the conductor, when the puncture needle pierces the cable and contacts the copper wire, the temperature sensor can be build in, and the performance parameters can be customized.

Inquiry Now

Product Features

It is easy to install, low cost, safe and reliable, maintenance free.

The joint is completely insulated and can be living working. It can branch at any position of the cable.

The joint is resistant to distortion, shock, corrosion and aging.

The comprehensive benefits is obvious, and the cost performance is better than the traditional connection method.

Scope of Application

Electrical fire monitoring system, fire equipment power supply monitoring system, intelligent power system, smart grid, substation transformation, environmental protection detection, small current grounding system, relay protection, motor protection system.

Performance Index

Electrical Parameters		Mechanical Parameters
Work Frequency	50~3000HZ	Shell	PC/PA Flame Retardant 94-V0
Rated Input	0~600A	Puncture needle	304 Stainless Steel
Rated Output	0-600A	Locking Knob	Stainless Steel 304 /PA compression plate
Output Cable	1.5mm2 Square	Construction plan	Fix the knob to lock the cable
Temperature NTC	10K/50K/100K	Work Temperature	-12°C ~ +70°C
Operation Measurement	Puncture (Temperature)	Connection Mode	Single Sheath Wire

Rural Power Grid Transformation, energy efficiency monitoring, smart power system.
