SEN-CTBS Rail Type AC Transformer

Name: SEN-CTBS Rail Type AC Transformer
Availability: InStock

The rail type AC transmitter can directly convert the AC current of the main circuit to DC4~20mA (through 250KV) output in linear proportion Ω Resistance conversion DC 1~5V or through 500V Ω Resistance conversion (DC1~10V) constant current ring standard signal measuring instrument, AC current transmitter has the advantages of high precision, fast response, small volume, low power consumption, wide frequency response, anti-interference, lightning wave and shock wave protection.

Inquiry Now

Product Features

The current transformer and the current transmitter are combined into an integrated design.
Six comprehensive protection functions: input overload protection, output over-current protection, long time short circuit protection, over voltage protection of working power supply, reverse connection protection of working power supply, transient surge current TVs protection.
Intelligent monitoring system for load current of generator, low voltage distribution cabinet, air conditioner, fan, etc.
High reliability, high stability and high cost performance.

Scope of Application

Suitable for current monitoring and battery applications, inverter and solar power management system, DC panel and DC motor drive, electroplating, welding applications, inverter, UPS servo control system current signal acquisition and feedback control.

Performance Index

Electrical Parameters
Measuring Range	0~400A
Accuracy	0.5% ( Other precision can be customized)
Aperture Size	0mm, 6.5mm, 12mm, 22mm
Output Signal	DC4-20mA, DC0-20mA, 0~10V, 0~5V, 485 ( Customzied Supported)
Load Capacity	Voltage Output 5mA, Current Output 6V
Response Time	25mS
Isolation and withstand voltage	3KV/50Hz, 1Min
Power Supply	±15V,±12V, ±24±,+24V,+12V

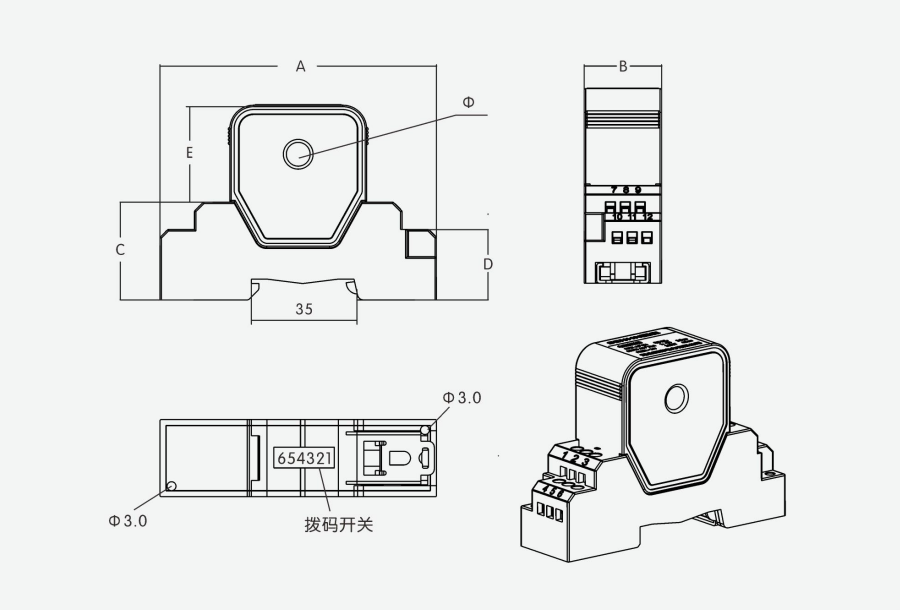

Outline and Installation Dimensions

Model & Specification	Rated Input	Rated Output	Accuracy Class	Dimensions (mm)
Model & Specification	(A)	(mA/V)	Accuracy Class	Φ	A	B	C	D	E
CTBS-0	5A 10A 20A 50A 100A 200A 400A	DC4-20mA DC0-20mA DC0~10V DC0~5V 485	0.5 1.0	0	92.5	26	32.5	23.5	13
CTBS-6.5				6.5	92.5	26	32.5	23.5	32
CTBS-12				12	92.5	26	32.5	23.5	32
CTBS-22				22	92.5	26	32.5	23.5	32
