SEN-BH0.66-I Current Transformer

Name: SEN-BH0.66-I Current Transformer
Availability: InStock

BH0.66-I current transformer is mainly used for cables and copper bars. It has simple structure, reasonable design and flexible application. According to the specifications of the copper bars used in the main circuit, there are many kinds of through holes corresponding to each other. The primary current of the main circuit includes 5A ~6000A, and the rated secondary output current is 1A~5A (0~1V). This series of products can meet the technical requirements of grade 0.2, grade 0.5, grade 1 and other different precision GB/T20840.1.2.

Inquiry Now

Product Features

Open and close structure,easy to install.
This series of products have 7specifications, and the primary current range is within 6000A.
The secondary output is the standard signal of 5A ~1 A.

Scope of Application

Power monitoring, energy consumption management, intelligent power system, electromagnetic relay protection, microcomputer protection, motor protection, rural power grid transformation, etc.

Performance Index

Electrical Parameters		Mechanical Parameters
Work Frequency	50~400Hz	Shell	ABS, Flame retardant grade 94-V0
Highest equipment	0.66/0.72KVrms	Skeleton	PBT
Primary Current	5~6000Arms	Core	Nickel or Nanocrystalline
Secondary Output	5/1aRMS	Internal Structure	Environment friendly epoxy resin casting
Ratio Difference	≤±0.1%	Construction Plan	Screw Fixation
Phase Difference	≤±10'	Work Temperature	-12°C ~ +45°C
Dielectric Strength	2.5KV/1mA/1min	Ambient Humidity	≤85%
Insulation Resistance	DC500V/1000MΩ/min	Connection Mode	Terminal Type / Shielded strand 1.5m

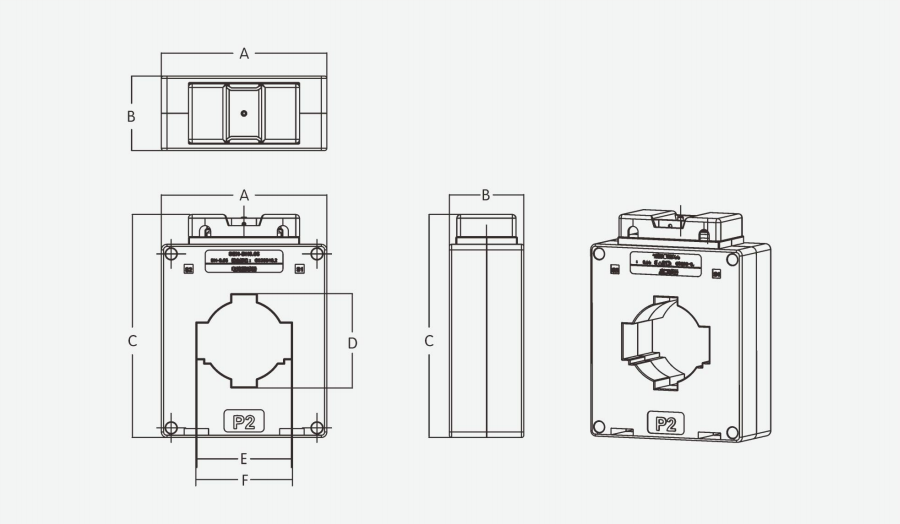

Outline and Installation Dimensions

Model	Dimensions (mm)
Model	A	B	C	D	E	F
BH0.66-I-30	60	37	79	25	30.5	32
BH0.66-I-40	74.5	40	98	41	42	43
BH0.66-I-50	83	40	98	50	51	53
BH0.66-I-60	102	40	126	58	62	50
BH0.66-I-80	125	40	118	55	82	50
BH0.66-I-100	170	40	136	65	105	50
BH0.66-I-120	190	46	136	80	126	50

Structure Chart
