Can Split Core Current Transformer Be Installed Without Power Cut?

Field electricians & system integrators often face a tough dilemma: they need to add current monitoring or metering points, but shutting down the circuit means production downtime and lost revenue. This is where split core current transformers get most of their attention.

A question comes up: Can split core current transformer be installed without power cut?

The answer is yes — in many cases, split-core CTs are designed specifically for live-line installation. But “can be installed hot” does not mean it is always safe, or suitable for every scenario. There are critical safety constraints and application boundaries you must understand before clamping one onto an energized cable.

What Is A Split Core Current Transformer?

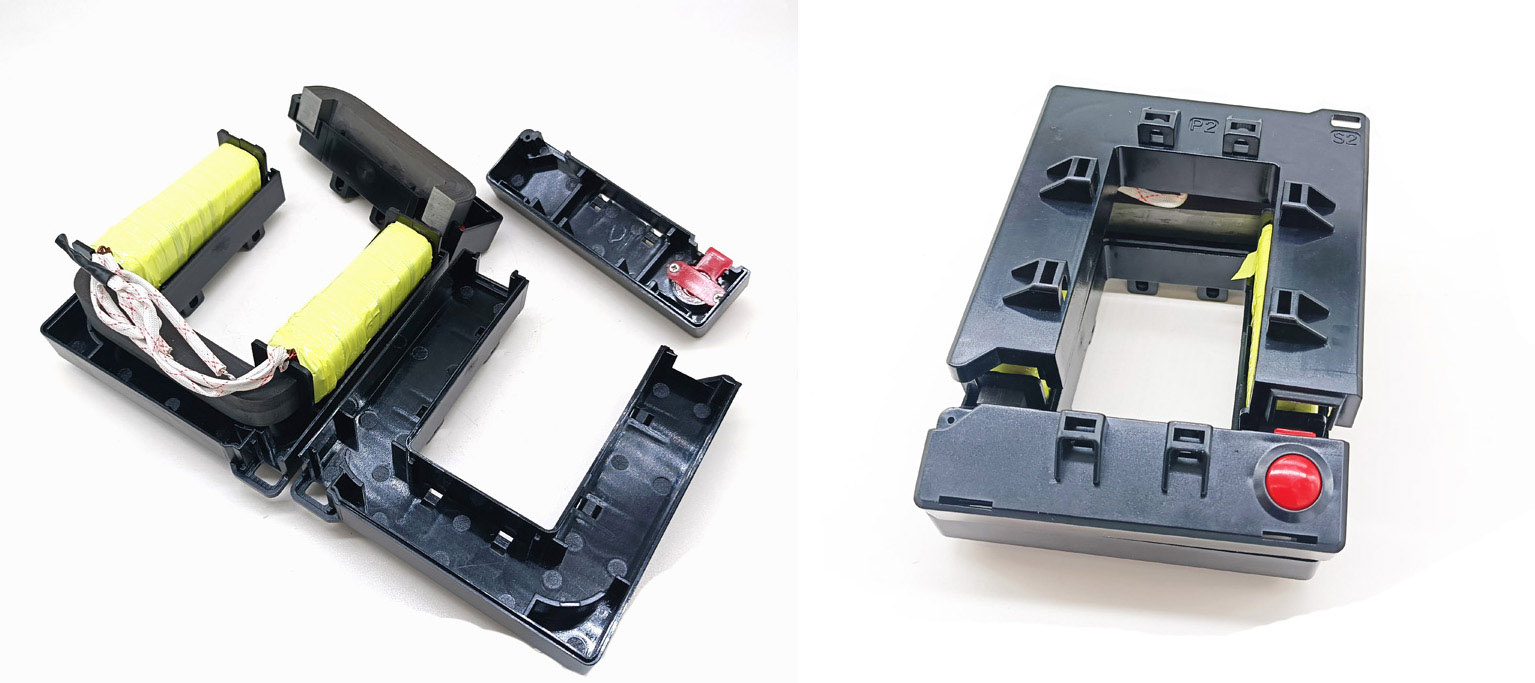

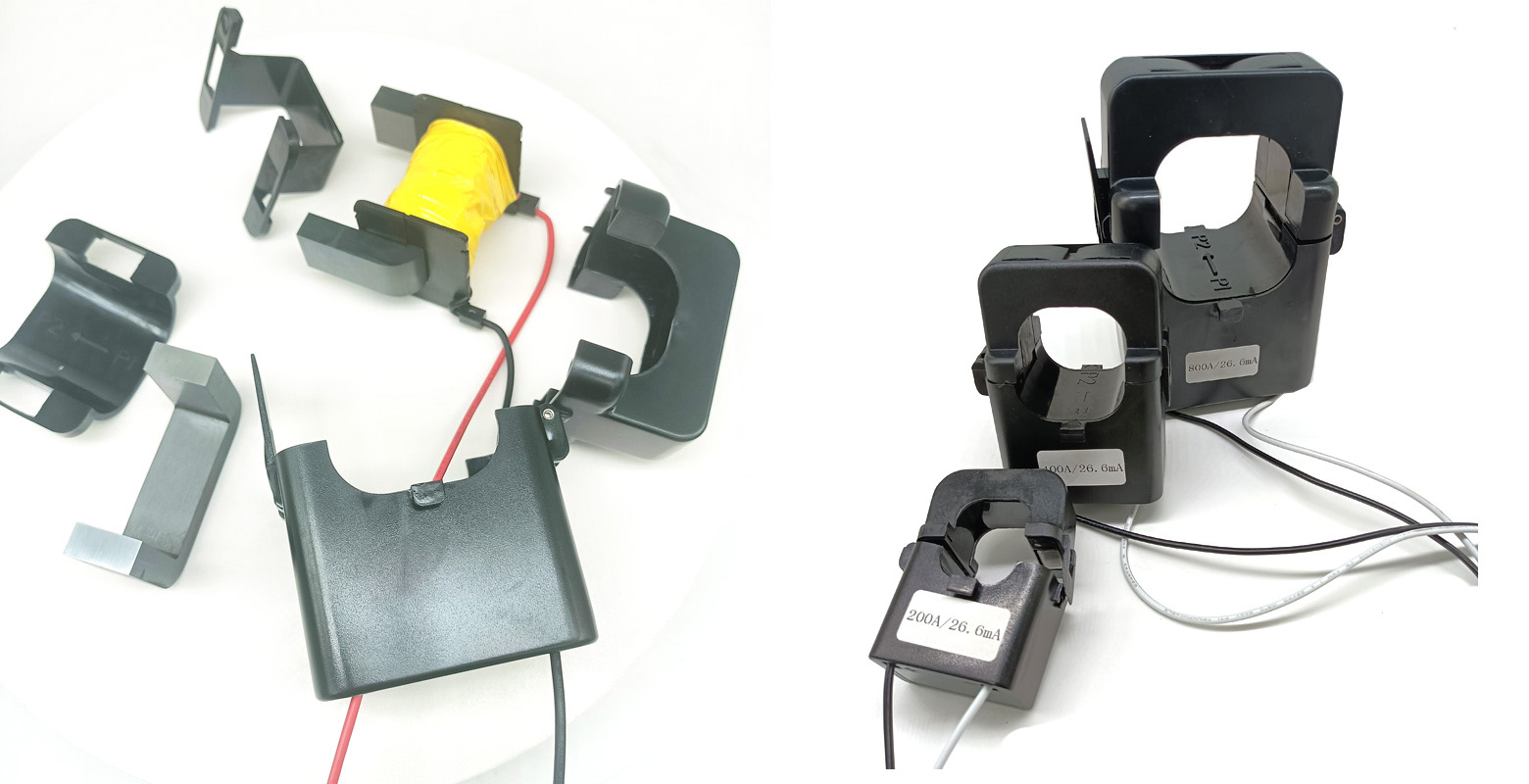

Split core (also called clamp-on) CT features a magnetic core that can open and close. The core splits into two halves, technicians can clip it around an existing single conductor without disconnecting the cable.

This mechanical design is exactly what enables live installation. For retrofitting energy monitoring, adding power quality loggers, or upgrading protection systems on running equipment, split core CT is the go-to option when power outage is not feasible.

How Live Installation of Split Core CT Works?

When the circuit remains energized, the technician opens the split core, places it around the insulated single conductor, closes & locks the core halves securely, then wires the CT secondary to your meter or data logger.

One extremely important rule: the CT secondary winding must never be open-circuited while primary current is flowing.

Before clamping the CT onto a live cable, the secondary terminals should already be connected to the measuring device or properly shorted. If the secondary circuit opens while primary carries current, high dangerous voltage will build up at the secondary terminals. This risks electric shock, insulation breakdown, and permanent damage to the CT core.

When You Can Install Split Core CT Without Power Cut?

1. Retrofit energy monitoring systems

Factories, commercial buildings, solar sites often want to add power meters without halting production. Split core CTs are widely used for this purpose.

2. Temporary power quality testing

Technicians use clamp-on CTs for short-term data logging and harmonic measurement during normal operation.

3. Low and medium voltage insulated single conductors

Most standard split core CTs work on insulated single cables. Ensure the cable insulation is intact before installation.

4. Field audits and load surveys

For load profiling and power consumption audits, live installation saves massive downtime costs.

When You Should NOT Do Live Installation?

Even though the hardware allows hot fitting, there are cases where a power cut is mandatory.

1. High voltage systems

Standard split core CTs are for LV low voltage circuits. Do not attempt live installation on medium/high voltage cables unless you use HV-rated tools and certified live-line working procedures.

2. Damaged cable insulation

Cracked, worn insulation creates shock hazard. Shut the power off before touching the cable.

3. Tight spaces or hazardous confined areas

Limited workspace increases risk of accidental short or contact. De-energize the circuit if safe working distance cannot be guaranteed.

4. Protection CT for critical fault circuits

Some protection applications require off-line inspection after installation. Even if you clamp it live, final testing may need power shutdown.

5.Multiple conductors bundled together

The CT core only measures one single conductor. If phase and neutral cables pass together inside the core, magnetic fields cancel each other and readings will be wrong.

Common Risks During Live Split Core CT Installation

• Open secondary risk: The biggest hazard. Always connect secondary circuit first.
• Poor core contact: Dirt, debris or improper closing creates air gaps, raising measurement error.
• Accidental short: Tools may bridge live conductors during installation. Use insulated tools.
• Wrong cable selection: Clamping around multi-core bundled cable gives incorrect current reading.
• Core saturation: Repeated opening/closing may affect magnetic performance, especially nanocrystalline split core CTs.

Practical Installation Checklist for Live Fitting

• Confirm CT voltage rating matches your circuit
• Connect secondary wiring to meter or short secondary terminals before fitting
• Inspect cable insulation for damage
• Use insulated gloves and insulated tools
• Fully close and lock the two core halves
• Verify measurement reading after installation
• Keep CT away from adjacent live conductors

FAQ

Q: Can split core CT work for billing metering when installed live?

A: It depends on local regulation. Many revenue-grade metering applications require certified off-site calibration, even if the CT can be installed live. Some utility companies do not accept hot-installed CTs for official billing purposes.

Q: What happens if I open CT secondary while the cable is live?

A: A large voltage will appear on the secondary terminals. It can harm operators and destroy the current transformer. This is the most dangerous mistake with CTs.

Q: Are split core CT less accurate than solid CT?

A: Yes. The air gap from the split introduces extra error. High precision split core CT using nanocrystalline material minimizes this gap error for power monitoring.

Conclusion

Split core current transformers can be installed without power cut for most low-voltage single-conductor monitoring applications. This is their biggest advantage for retrofits and load audits.

However, live installation carries electrical hazards, especially open secondary risk. Always follow safety protocols and check local electrical codes before hot work. And remember, live installation capability does not automatically make the CT suitable for all metering or protection scenarios.
