ICT-CTYD Large Combined Residuall Current Transformer

Name: ICT-CTYD Large Combined Residuall Current Transformer
Availability: InStock

Rectangular combined large residual current transformer is mainly used in cable circuit environment. It has the advantages of simple structure, small volume and flexible application. According to specifications of the cable used in the main circuit, it has a variety of through hole diameters. This series of products can meet the technical requirements of 0.2 level, 0.5 level and 1 level and other difference precision. At the same time, it can also meet the strict requirements of the new national standard for the balance characteristics. The unbalanced current output value can also be better than 30mA, 10mA, 5mA, or even 3mA, greatly reducing the false alarm caused by the magnetic field interference of the main circuit current, providing sufficient guarantee for the reliability of the equipment. Excellent and advanced production process. This series of products meet the requirements of GB-14287.2-2005 and GB14287.2-2014.

Inquiry Now

Product Features

Core piercing structure, flame retardant epoxy resin casting, good stability.

High magnetic conductivity nickel steel or nanocrystalline, good linearity and high sensitivity.

Excellent balance characteristics and strong anti electromagnetic interference ability.

Scope of Application

Electrical fire monitoring, fire prevention and leakage system, intelligent power system, small current grounding system, electromagnetic relay protection, microcomputer protection, intelligent power, environmental protection monitoring, etc.

Performance Index

Electrical Parameters		Mechanical Parameters
Work Frequency	50~400Hz	Shell	ABS, Flame retardant grade 94-V0
Rated Input	10mA ~5A	Skeleton	PBT
Measuring Range	10%In ~130%In	Core	Nickel or nanocrystalline
Rated Output	0~1V(A) or 0~0.5mA	Internal Structure	Environment friendly epoxy resin casting
Ratio Difference	≤±0.1%	Construction Plan	Screw Fixation
Phase Difference	≤±10'	Work Temperature	-12°C ~ +45°C
Dielectric Strength	2.5KV/1mA/1min	Ambient Humidity	≤85%
Insulation Resistance	DC500V/1000MΩ/min	Connection Mode	Terminal type / shielded strand 1.5m

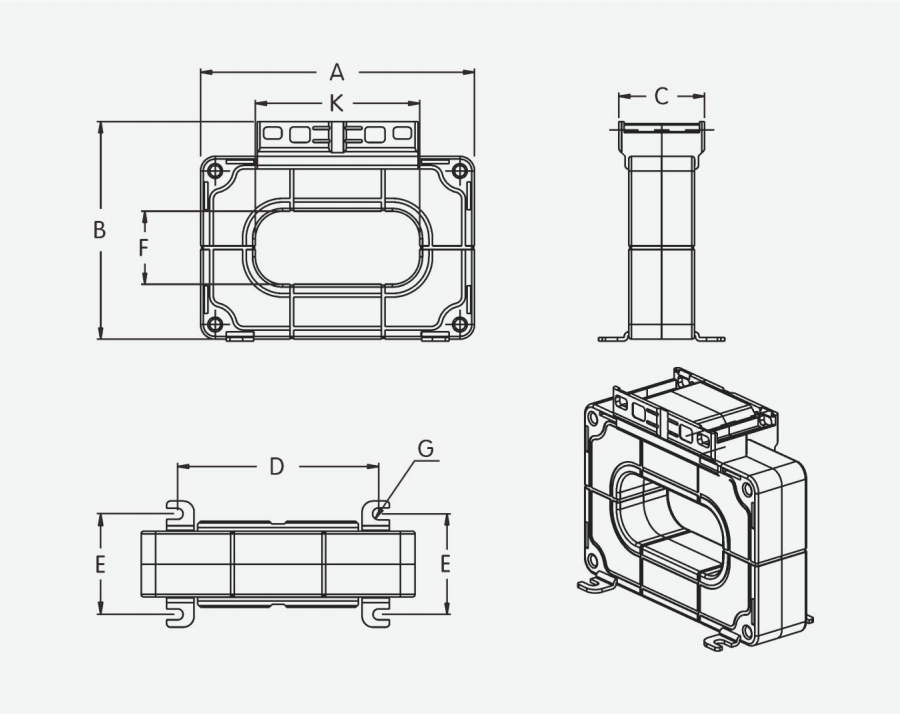

Outline and Installation Dimensions

Model & Specification	Rated Input	Rated Output	Accuracy Class	Dimensions (mm)
Model & Specification	(A)	(mA/V)	Accuracy Class	A	B	K	F	C	D	E	G
CTYD-0990	0~1A	0~1V (0.5mA)	0.1 0.2 0.5 1.0	150	169	90	90	47	106	55	M6
CTYD-1490				200	169	140	90	47	156	55	M6
CTYD-1990				250	169	190	90	47	206	55	M6
CTYD-2490				300	169	240	90	47	256	55	M6
CTYD-2990				350	169	290	90	47	306	55	M6
CTYD-3490				400	169	340	90	47	356	55	M6
CTYD-3990				450	169	390	90	47	406	55	M6
CTYD-4490				500	169	440	90	47	456	55	M6
CTYD-4990				550	169	490	90	47	506	55	M6
CTYD-5490				600	169	540	90	47	556	55	M6
CTYD-599				650	169	590	90	47	606	55	M6
CTYD-6490				700	169	640	90	47	656	55	M6
CTYD-09140				150	219	90	140	47	106	55	M6
CTYD-14140				200	219	140	140	47	156	55	M6
CTYD-19140				250	219	190	140	47	206	55	M6
CTYD-24140				300	219	240	140	47	256	55	M6
CTYD-29140				350	219	290	140	47	306	55	M6
CTYD-34140				400	219	340	140	47	356	55	M6
CTYD-39140				450	219	390	140	47	406	55	M6
CTYD-44140				500	219	440	140	47	456	55	M6
CTYD-49140				550	219	490	140	47	506	55	M6
CTYD-54140				600	219	540	140	47	556	55	M6
CTYD-59140				650	219	590	140	47	606	55	M6
CTYD-64140				700	219	640	140	47	656	55	M6

Packaging & After-sales Service

All products are strictly tested before delivery with complete inspection reports. We adopt professional anti-static and shockproof packaging to ensure product safety during international transportation.

We support OEM & ODM customized services, providing one-stop solutions from design, production to technical after-sales support. Long-term stable supply, fast delivery and professional technical guidance are available for global customers.

If you need detailed datasheet, dimension drawing, test report or customized solution, please feel free to contact us.

We provide free sample testing and professional technical support for global partners.
